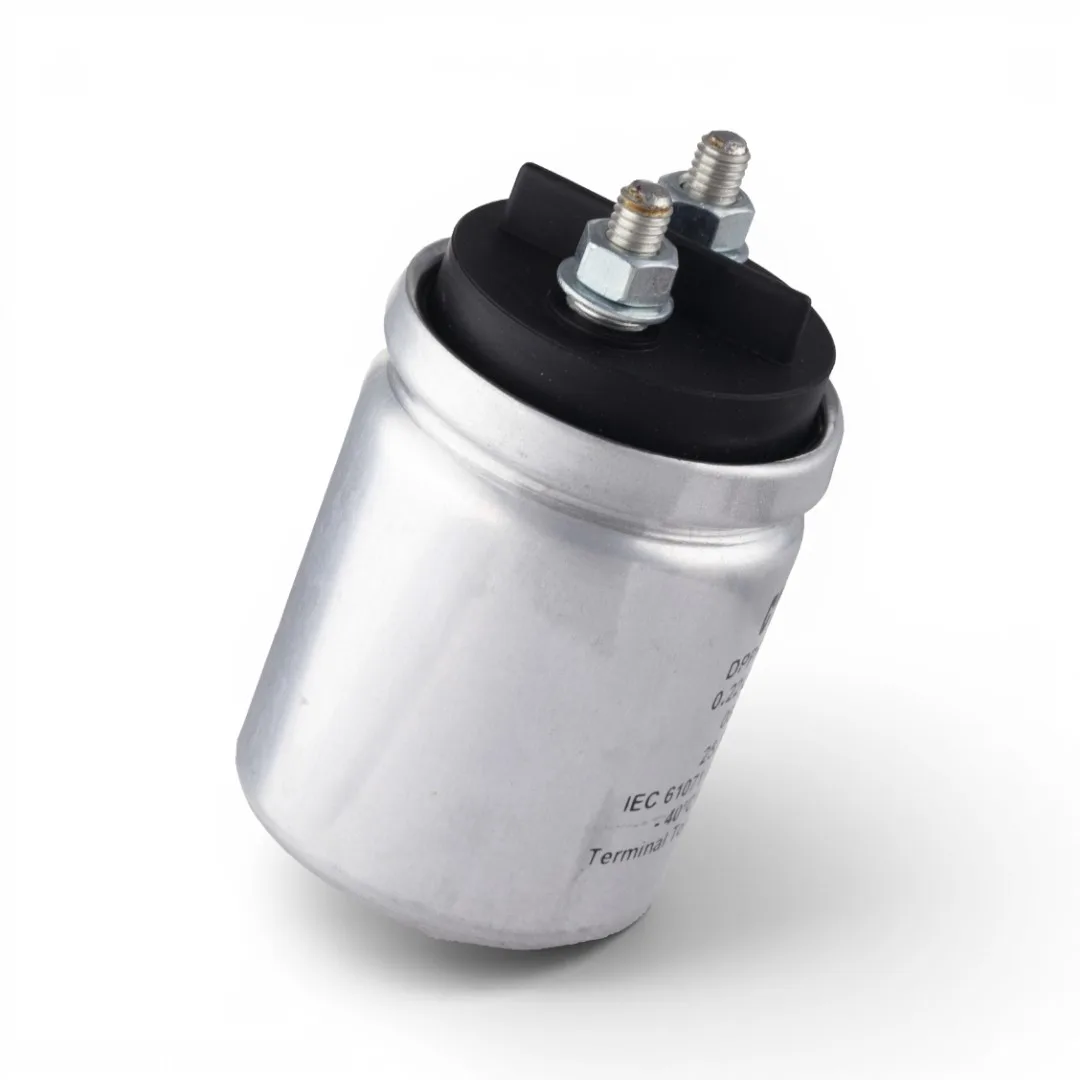

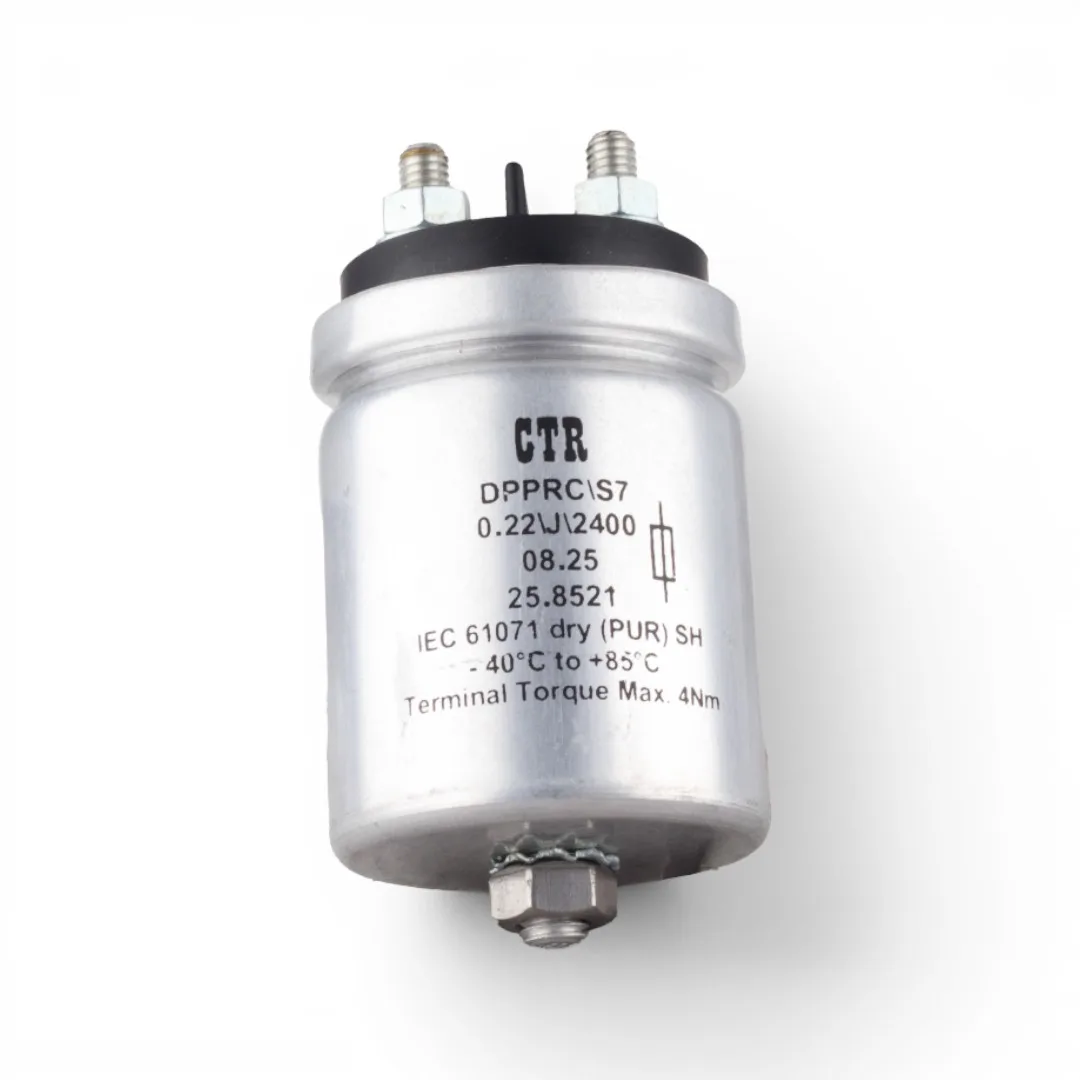

CTR 0.22 MFD 2400 VDC
CTR Snubber Capacitors for Induction Furnace, SCR & IGBT Protection
Description
CTR Snubber Capacitors are high-voltage metallized polypropylene film capacitors designed for high-frequency power electronics, SCR protection, inverter systems, and induction furnace applications. These capacitors provide excellent reliability, low loss performance, and long operational life in demanding industrial environments.
Technical Specification
| Parameter | Specification |
|---|---|
| Brand | CTR |
| Capacitor Type | Snubber / Power Electronic Capacitor |
| Dielectric Type | Metallized Polypropylene Film |
| Construction | Dry Type (PUR) |
| Self-Healing | Yes |
| Standard | IEC 61071 |
| Operating Temperature | -40°C to +85°C |
| Mounting | Stud Mount |
| Terminal Type | Dual Screw Terminal |
| Application | High Frequency / Power Electronics |
Available Models & Ratings
| Model | Capacitance | Voltage Rating | Construction |
|---|---|---|---|
| DPPRCIS7 | 0.22 µF | 2400V DC | Dry Type (PUR) SH |
| DPPRCIS7 | 0.47 µF | 2400V DC | Dry Type (PUR) SH |
| DPPRCIS7 | 0.5 µF | 2400V DC | Dry Type (PUR) SH |
| DPPRCIS7 | 1.0 µF | 2400V DC | Dry Type (PUR) SH |
| MPPRCIS21 | 200 µF | 750V DC / 440V AC | Oil Filled |
Applications
- Snubber Circuits
- SCR Protection Circuits
- IGBT Protection
- Induction Furnace Inverter Panels
- Converter & Inverter Systems
- High Frequency Power Electronics
Suitable For
Suitable for induction furnace power supply supplied by Electrotherm, Inductotherm, Megatherm and other OEMs.
- Manufacturer names are referenced solely to indicate typical applications and compatibility.
