MANUAL CHANGE-OVER SWITCH EQUIVALENT TO IT
Description

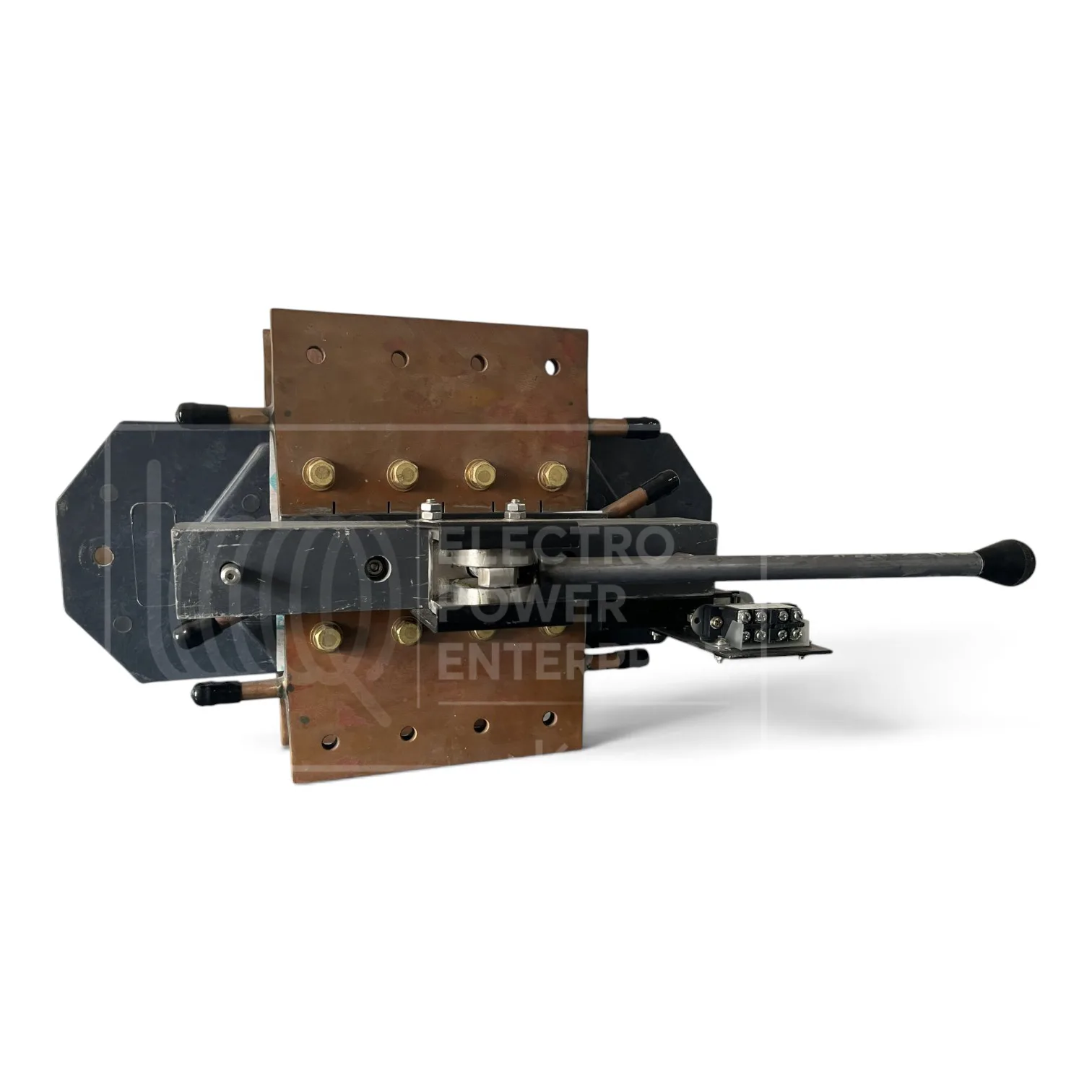

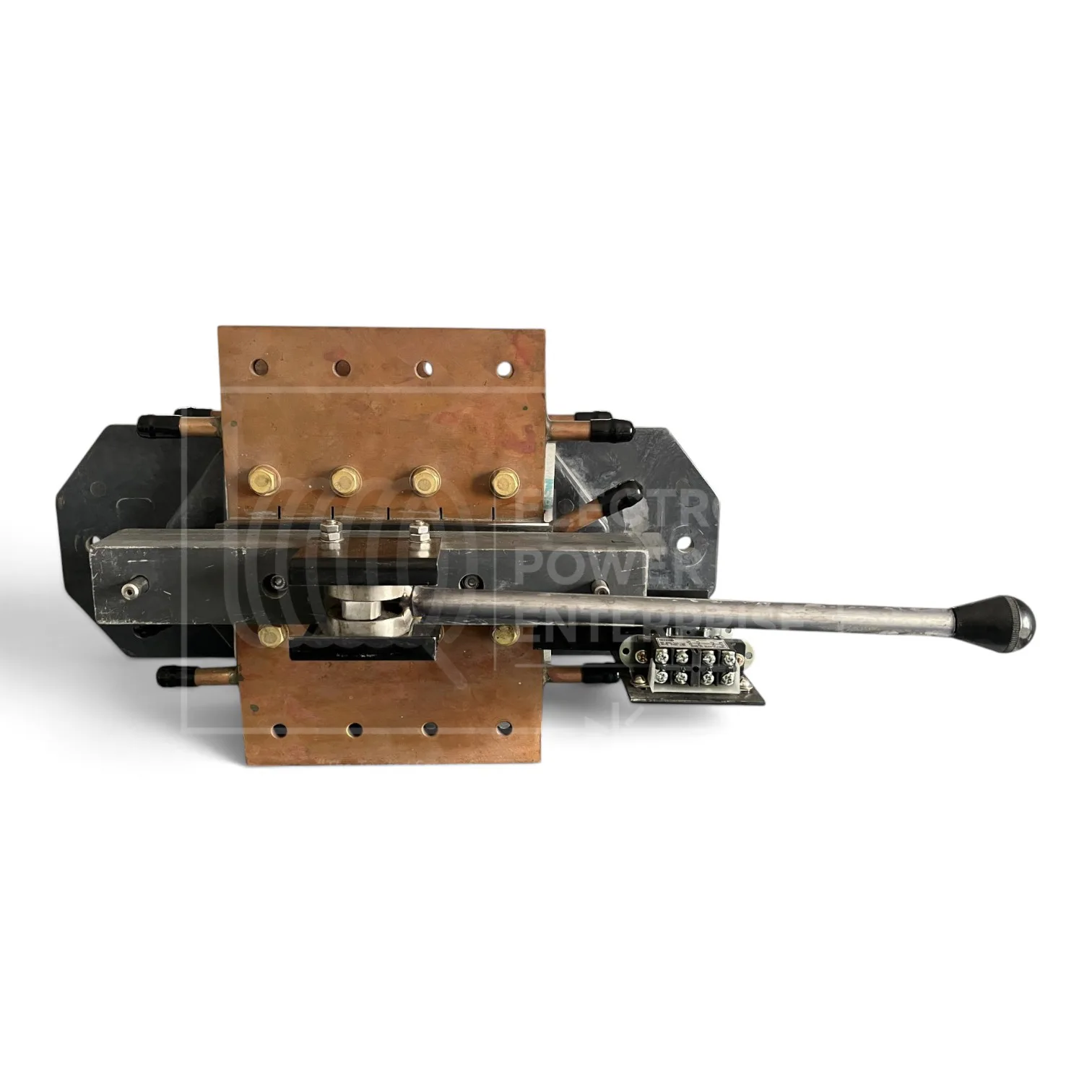

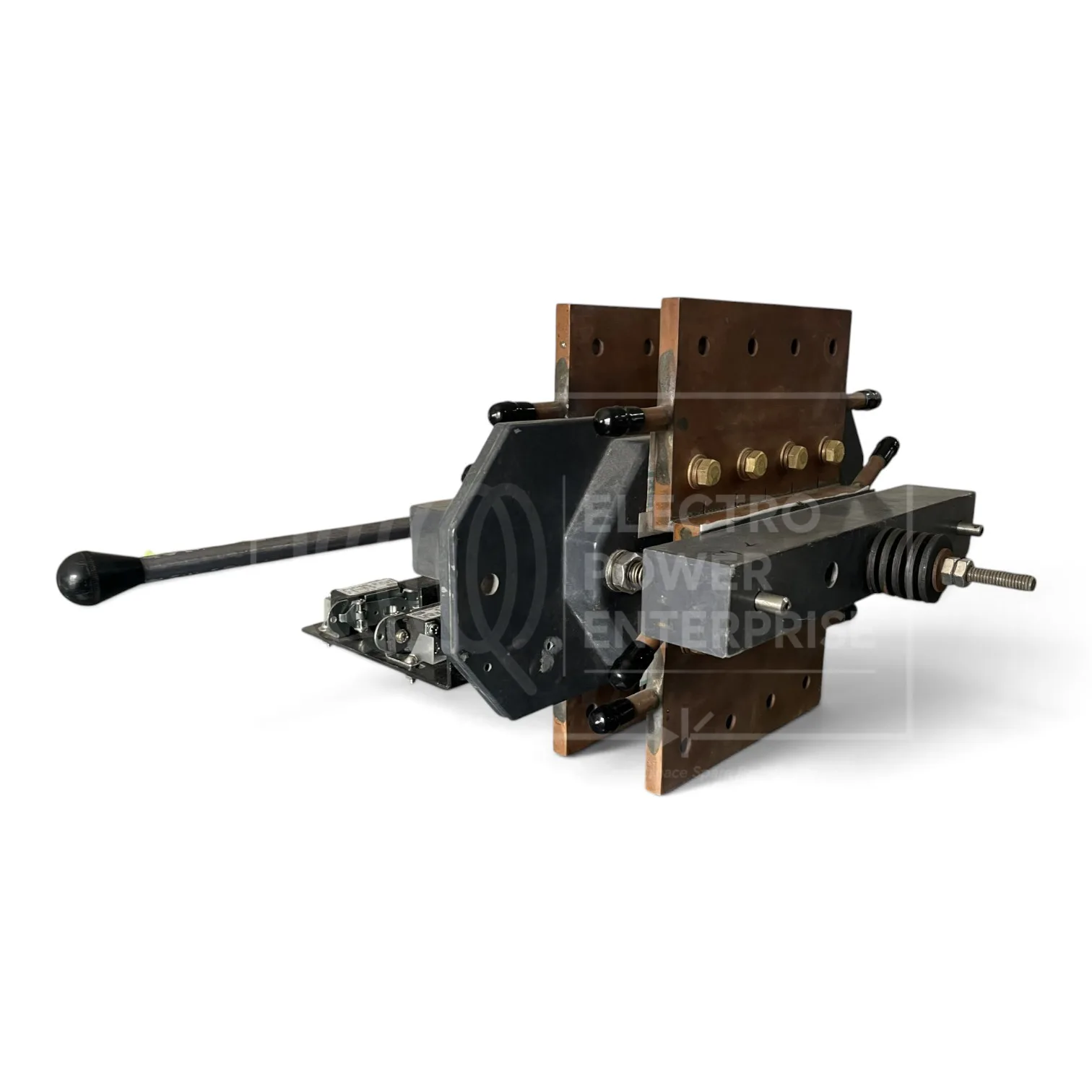

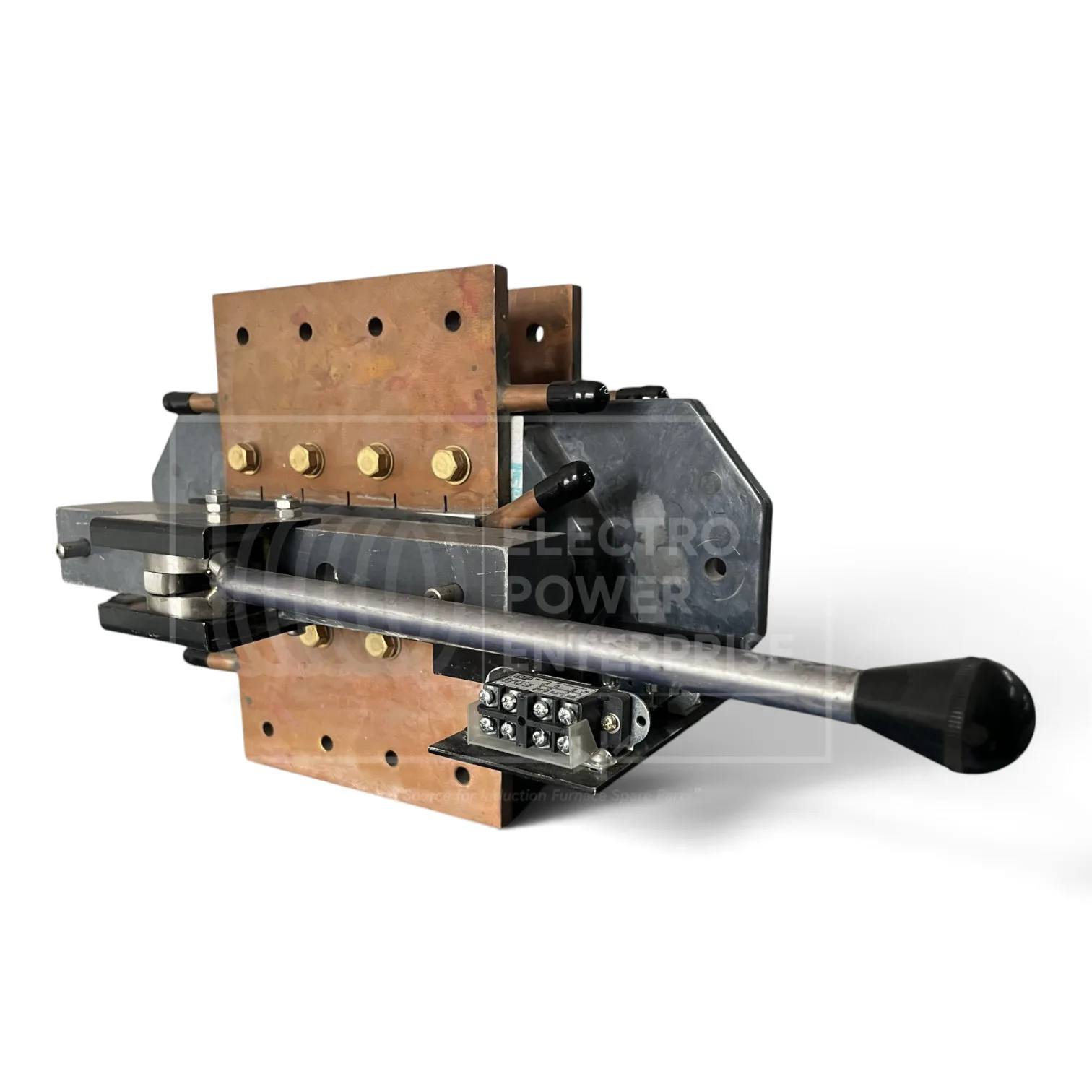

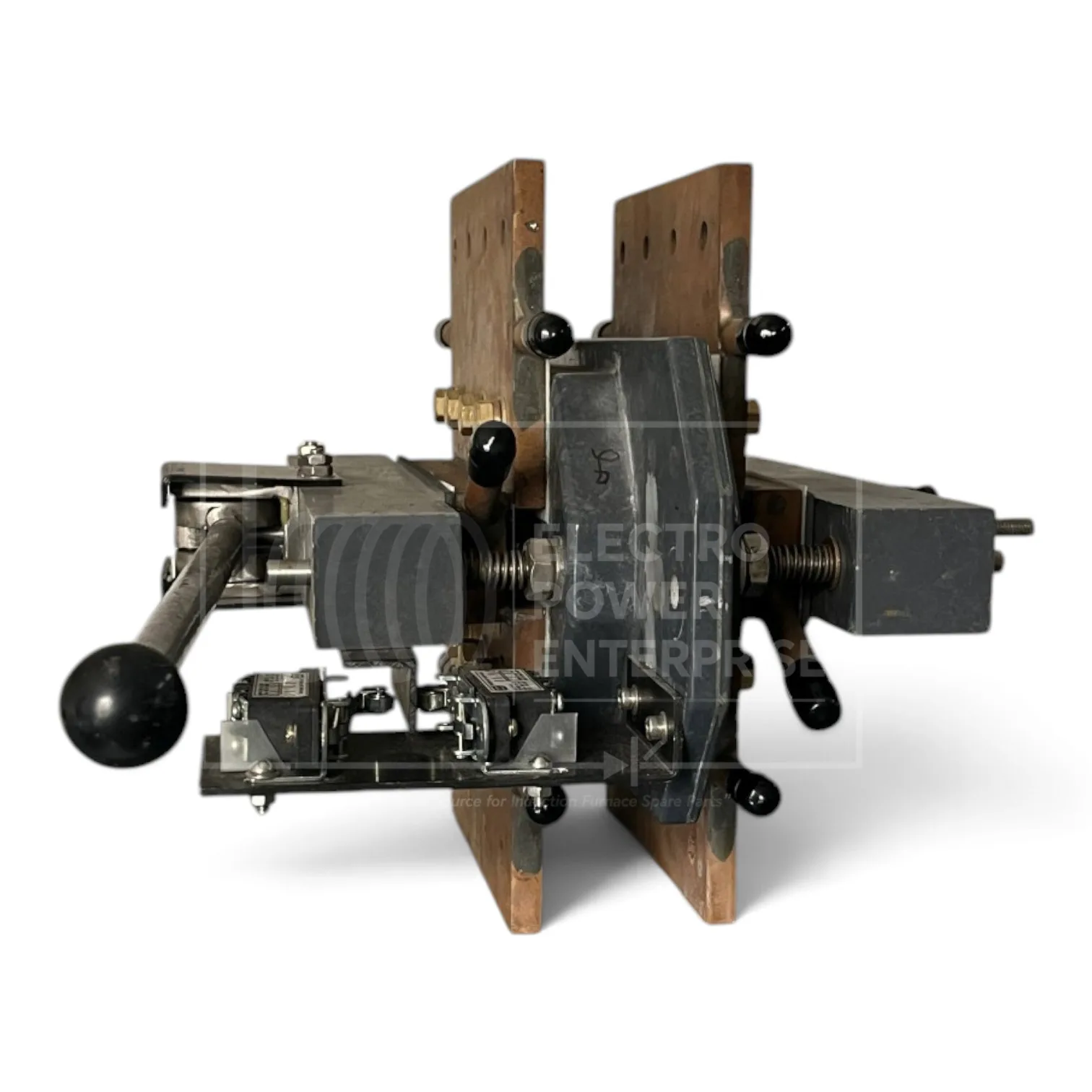

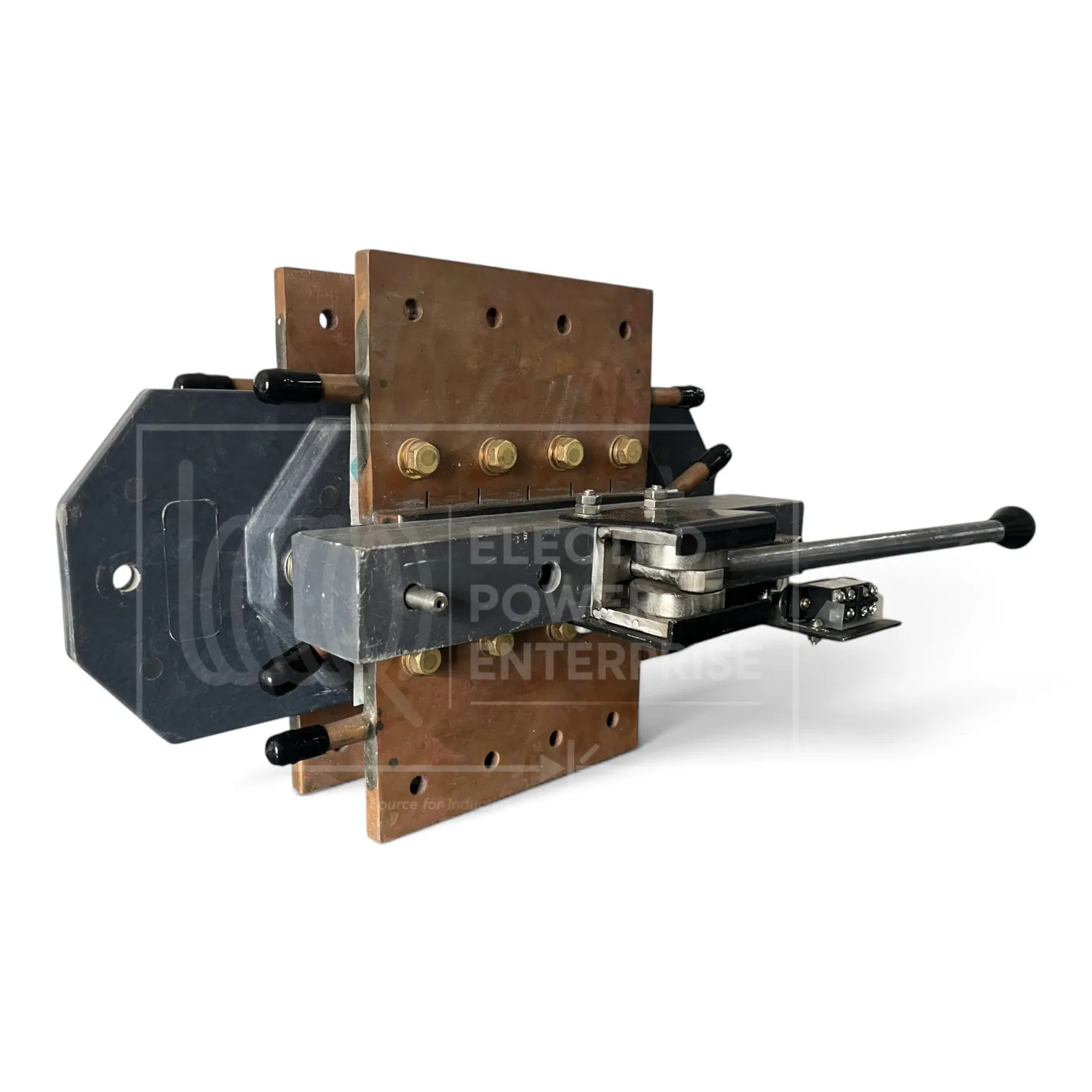

Manual Change-Over Switch is designed for manual power switching between an induction furnace power supply and furnace coil. The unit is water-cooled and configured for panel / busbar mounting. The supplied certificate specifies EC Grade Copper conductors, silver contact parts and heat-resistant insulation.
Key Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | IT Manual Change-Over Switch |
| Operation | Manual |
| Mounting | Panel / Busbar Mounted |
| Type | DPST |
| Rated Voltage | 6000 V |
| Rated Current | 9600 A |
| Conductor | EC Grade Copper (99.9% Conductivity) |
| Cooling | Water-cooled |
| Application | Induction furnace power supply to furnace coil power switching |
Key Features
High-current switching configuration rated at 9600 A as stated on the certificate.
6000 V rated voltage as stated on the certificate.
Water-cooled construction for the specified application.
EC Grade Copper conductor with 99.9% conductivity.
Silver contact parts for the switching assembly.
Heat-resistant insulation material.
DPST configuration and manual operation.
Suitable for panel / busbar mounted induction furnace systems.
Applications
Induction furnace power supply systems.
Manual switching between furnace power supply and furnace coil.
High-current busbar and panel switching arrangements.
Industrial furnace maintenance and replacement applications where the specified rating is suitable.
Material Details
| Component | Material |
|---|---|
| Conductor | EC Grade Copper (99.9% Conductivity) |
| Contact Parts | Silver Contact |
| Cooling | Water Cooling |
| Insulation | Heat Resistant Insulation Material |
🔧 Suitable For
Suitable for Inductotherm furnace power supplies and systems.
- Manufacturer names are mentioned solely to indicate typical applications and compatibility.
