HONEYWELL WFS6000 WATER FLOW SWITCH

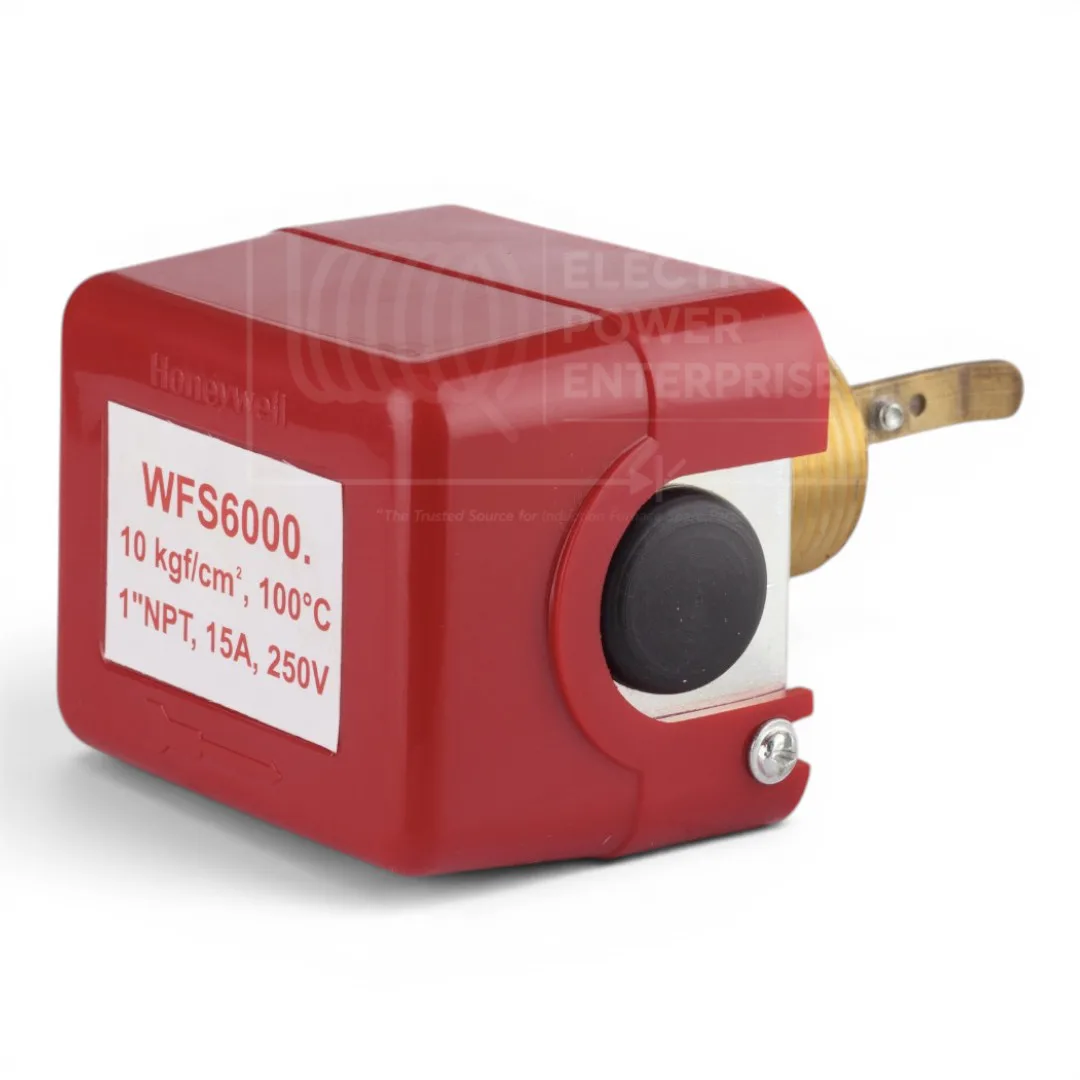

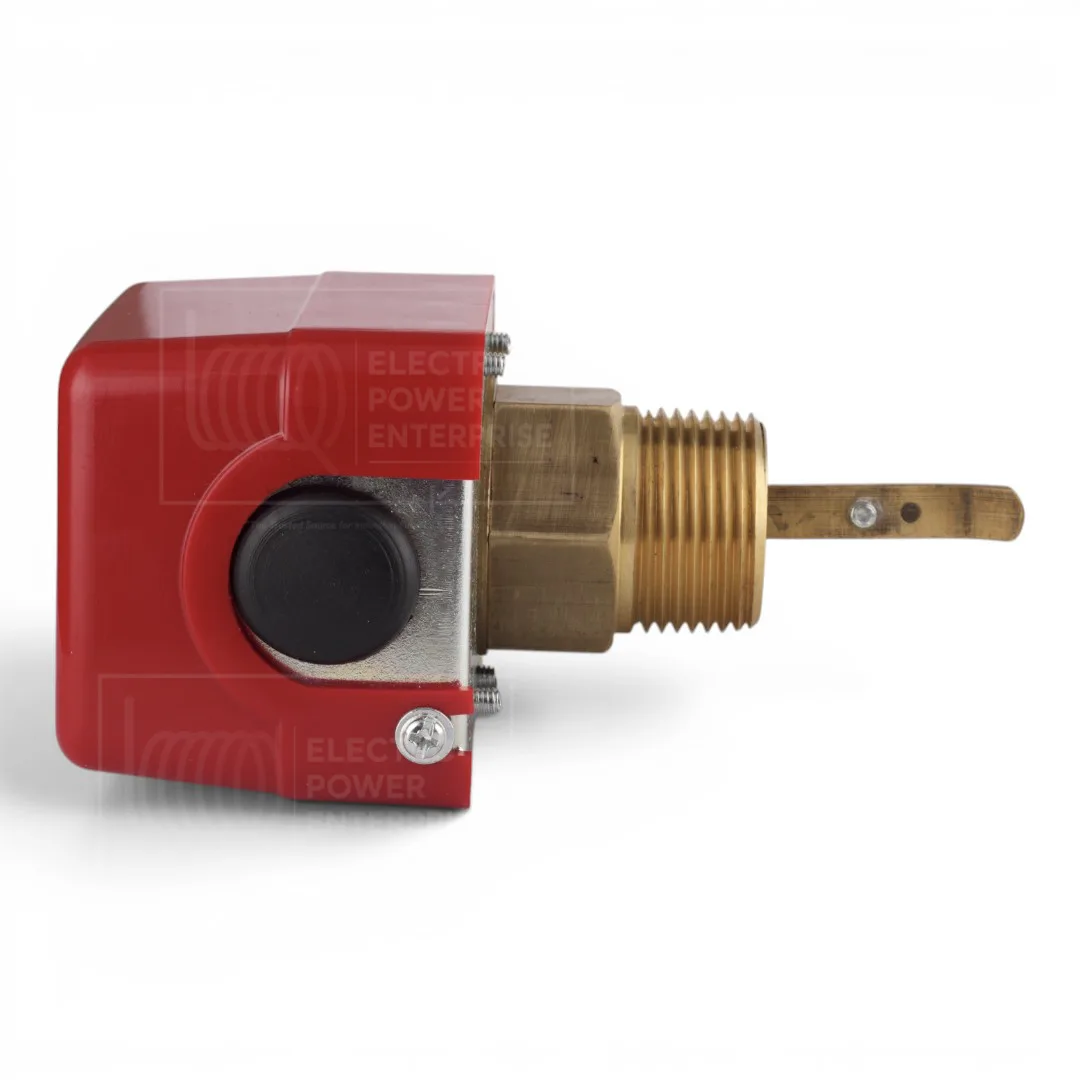

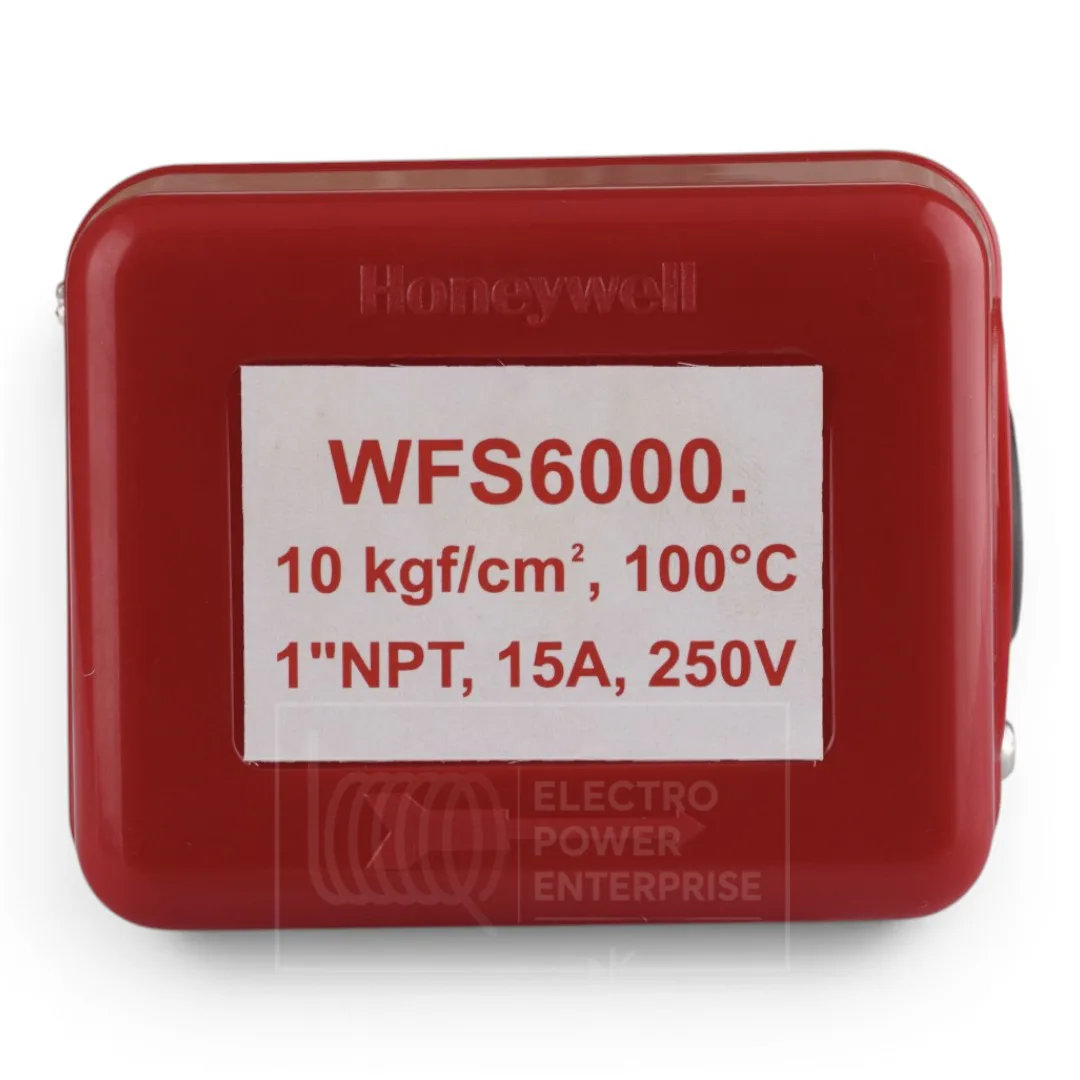

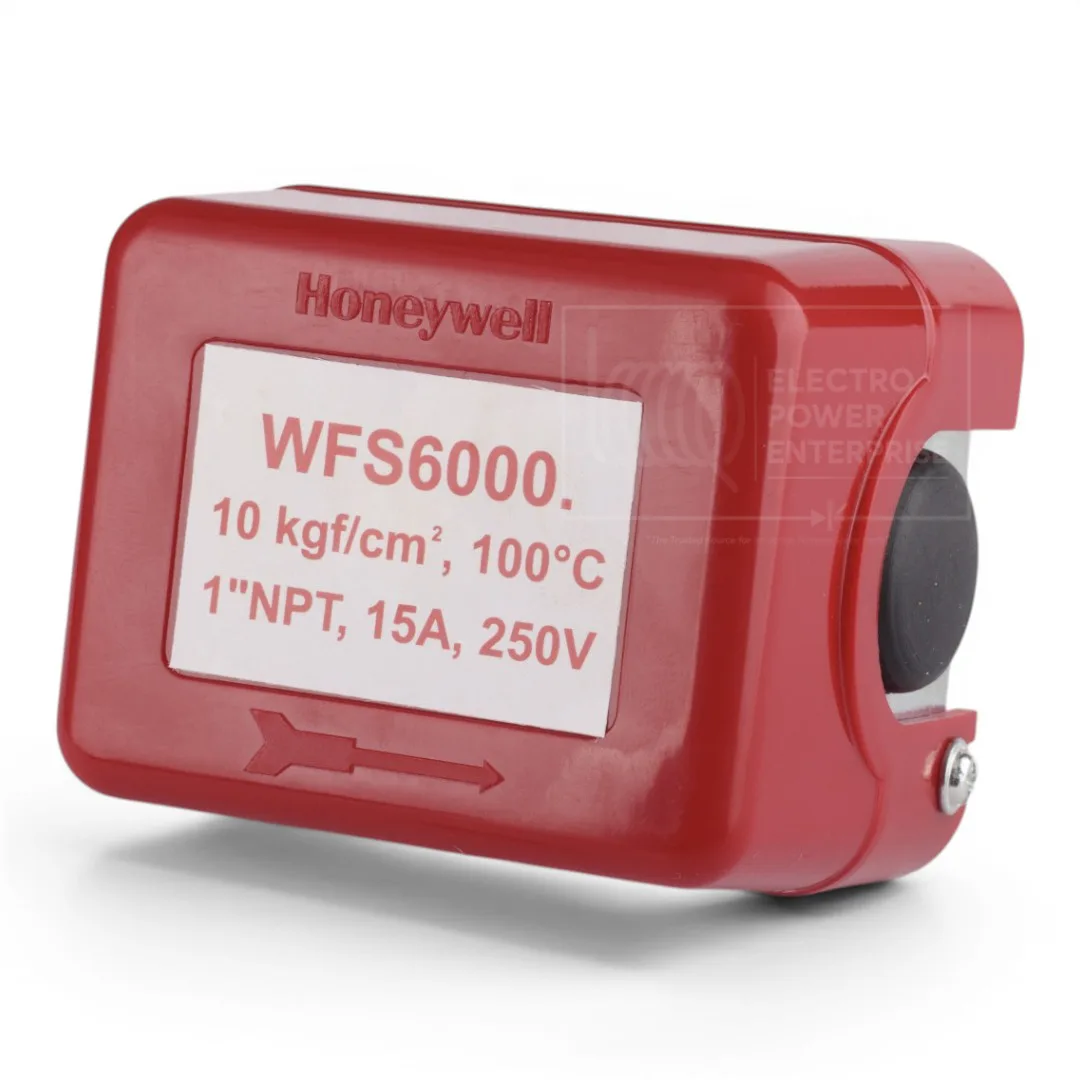

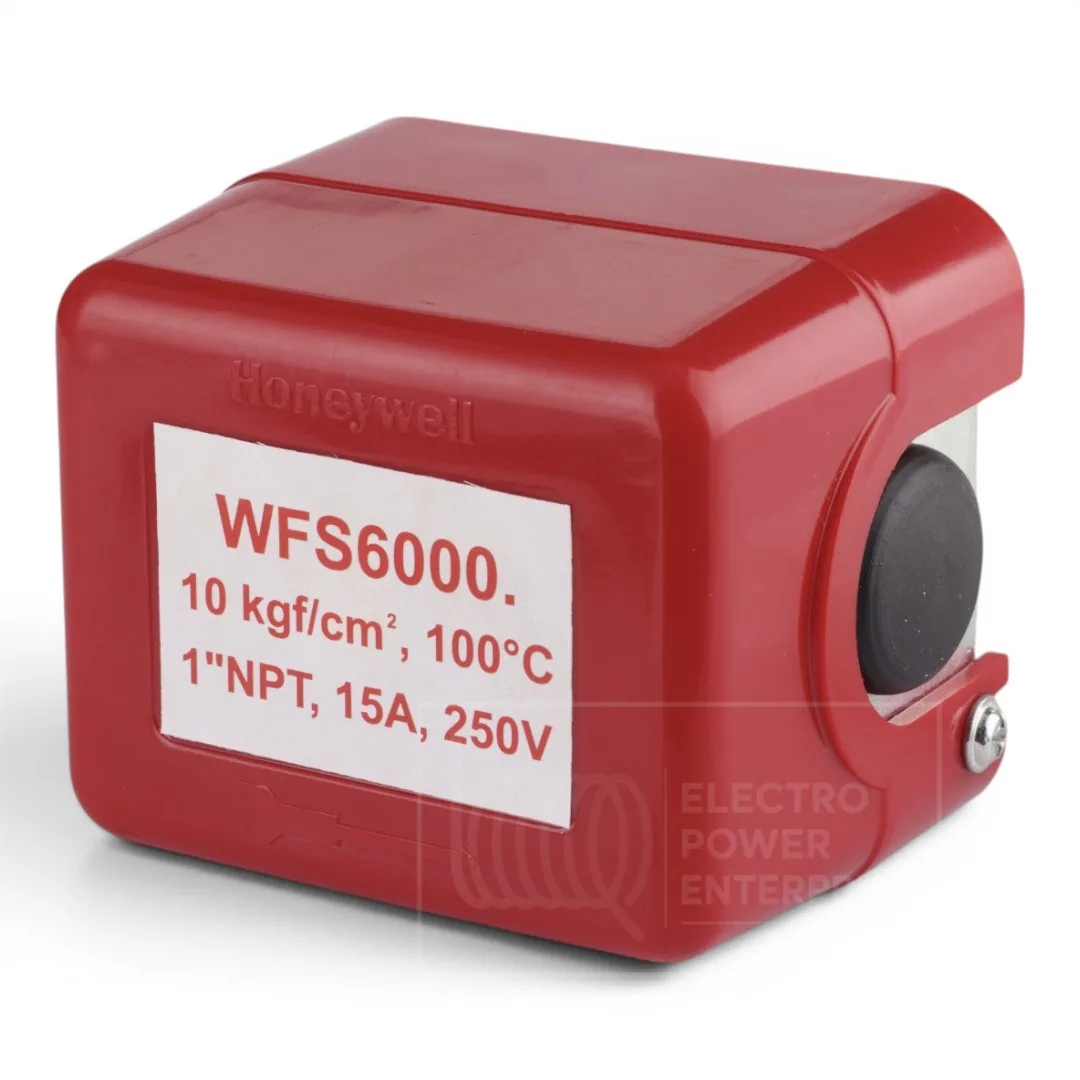

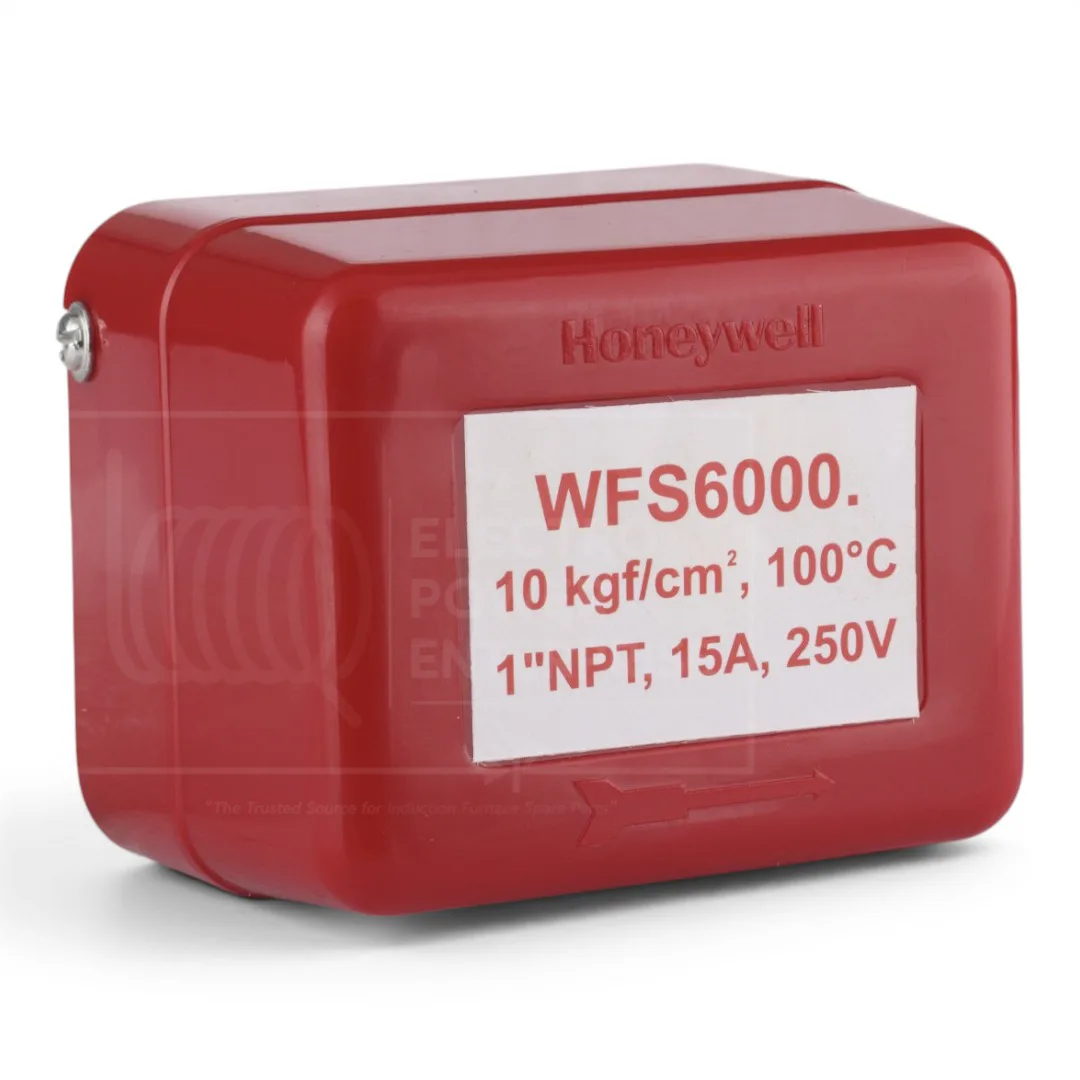

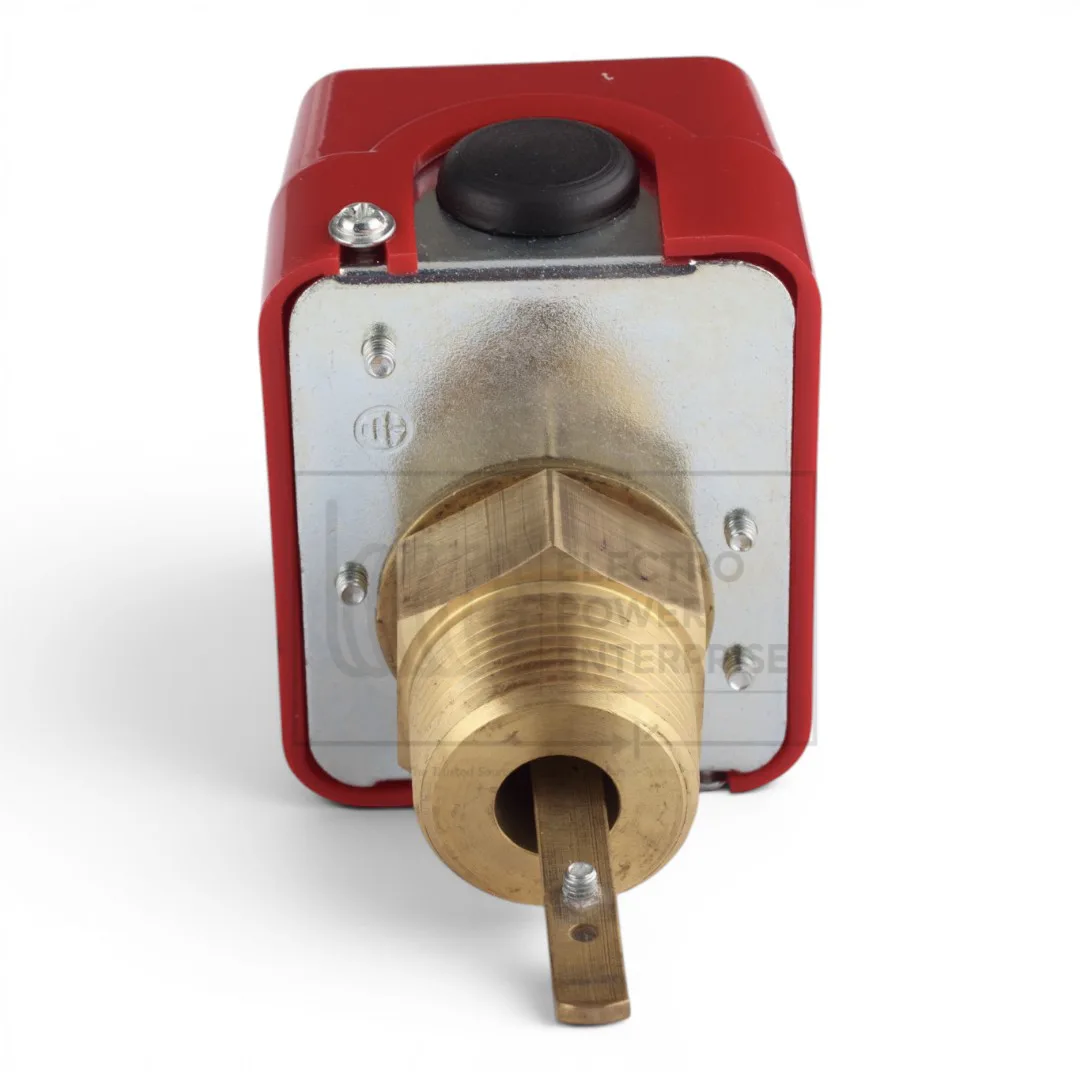

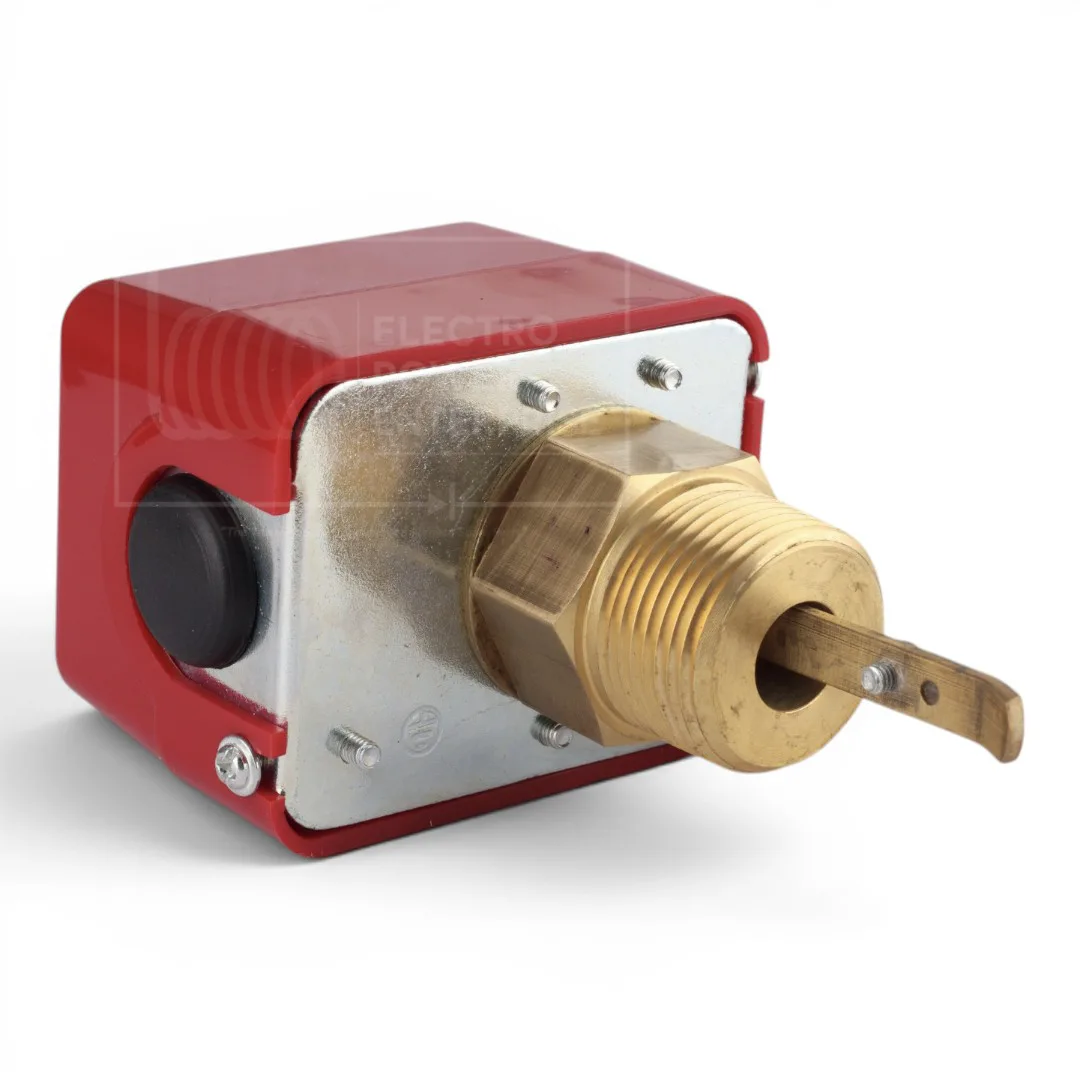

Honeywell WFS6000 Paddle Type Water Flow Switch
Description
Honeywell WFS6000 Water Flow Switch is a rugged industrial paddle-type flow switch designed for monitoring water and liquid flow in pipelines. It provides reliable flow detection and protection for induction furnace cooling systems, HVAC systems, chillers, pumps, heat exchangers, and industrial water circulation applications. The switch automatically activates or deactivates electrical contacts based on liquid flow conditions
Technical Specification
| Parameter | Specification |
|---|---|
| Brand | Honeywell |
| Model | WFS6000 |
| Product Type | Paddle Type Water Flow Switch |
| Operating Pressure | 10 kgf/cm² (1 MPa) |
| Withstand Pressure | 17.5 kgf/cm² (1.75 MPa) |
| Insulation Resistance | Over 100 MΩ, DC500V |
| Withstand Voltage | AC1500V / 1 Minute |
| Contact Point Life | 1000K Cycles |
| Bellows Life | 500K Cycles |
| Max Fluid Temperature | 100°C (212°F) |
| Connection Type | 1″ NPT |
| Electrical Type | SPDT Switch |
- Please contact us for custom sizes.
Applications
- Induction Furnace Cooling Systems
- Heat Exchangers
- Chillers
- HVAC Systems
- Industrial Water Circulation Systems
- Pump Protection Systems
🔧 Suitable For
Suitable for Inductotherm & other oem induction furnace cooling systems, converter & inverter panels, transformer cooling, industrial water circulation systems, and OEM cooling applications.
