Description
SCR INV REP3708FC45/REP800218
Description

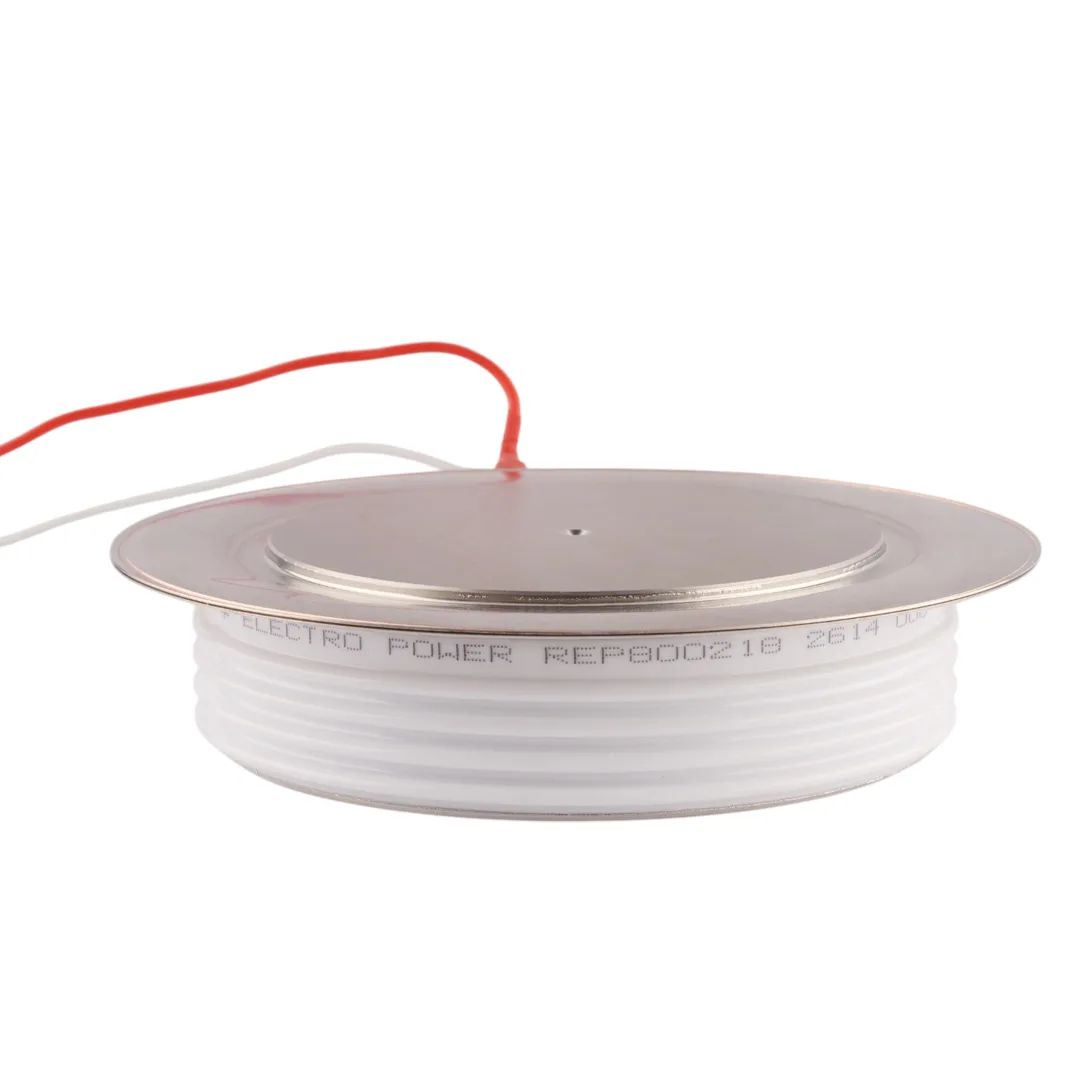

SCR REP3708FC45/REP800218 Inverter SCRs (Silicon Control Rectifier) are fast-switching thyristors designed for high-frequency inverter applications. They offer low switching losses, high reliability, and excellent thermal performance-ideal for induction furnaces, inverter panels, and industrial heating systems.
Technical Specification
| Parameter | REP3708FC45/REP800218 |
|---|---|
| Device Type | Inverter SCR |
| Mounting | Disc Type |
| Current Rating (I RMS) | 5800 A |
| Voltage Rating (VRRM) | 4500 V |
| dV/dt | 1000 V/μsec |
| I^2T | 12 x 10^6 A^2s |
| Turn off time | 250 μs |
| Size | 73/36 mm (Contact dia/ Height) |
| Operating Temp | -40°C to +125°C |
Applications
- Induction furnace inverter circuits
- High-frequency heating systems
- Power inverter panels
- Industrial converters
- Resonant inverter systems
Suitable For
Suitable for induction furnace coil manufacturing and repair in systems supplied by Electrotherm, Inductotherm, Megatherm and other OEMs.
- Manufacturer names are referenced solely to indicate typical applications and compatibility.
