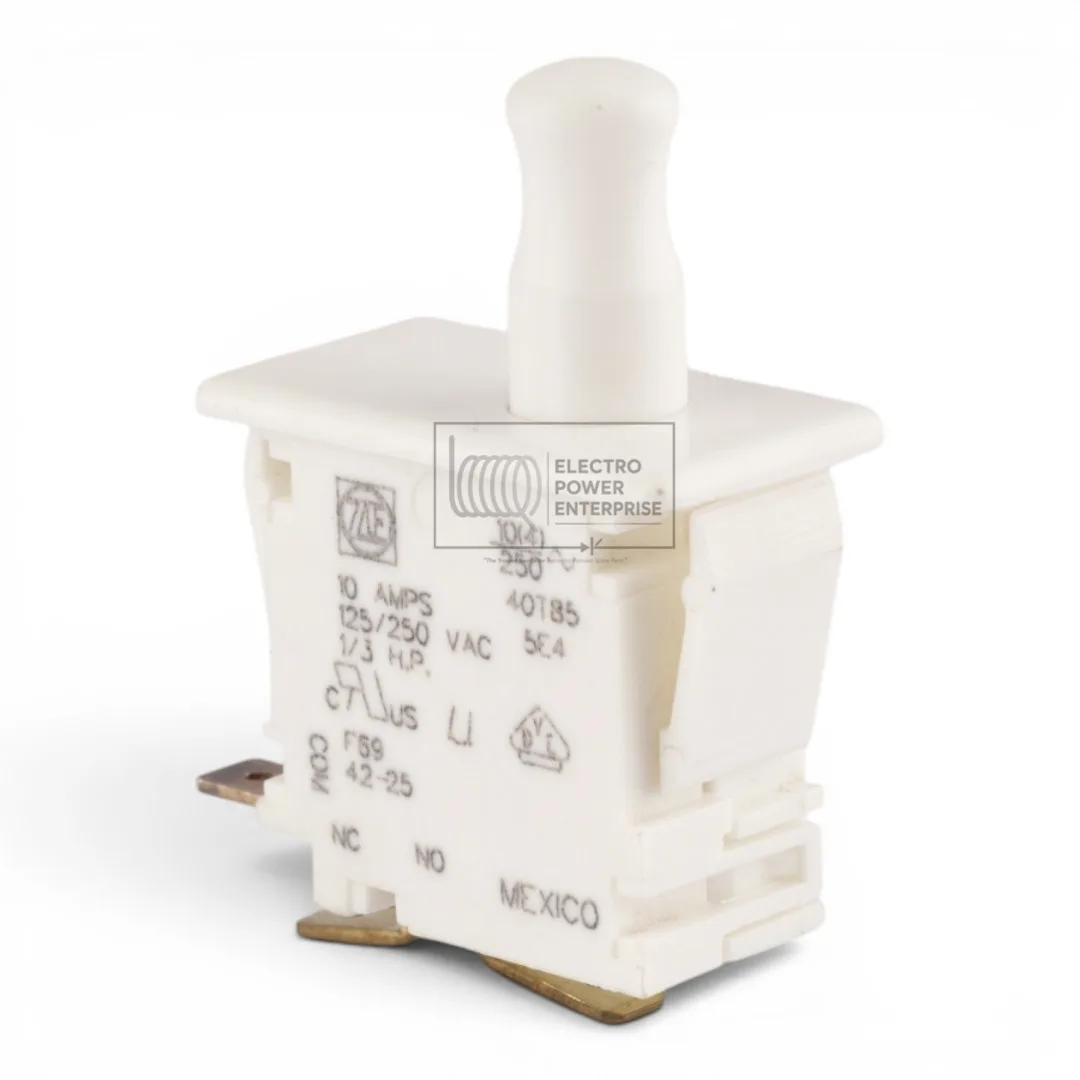

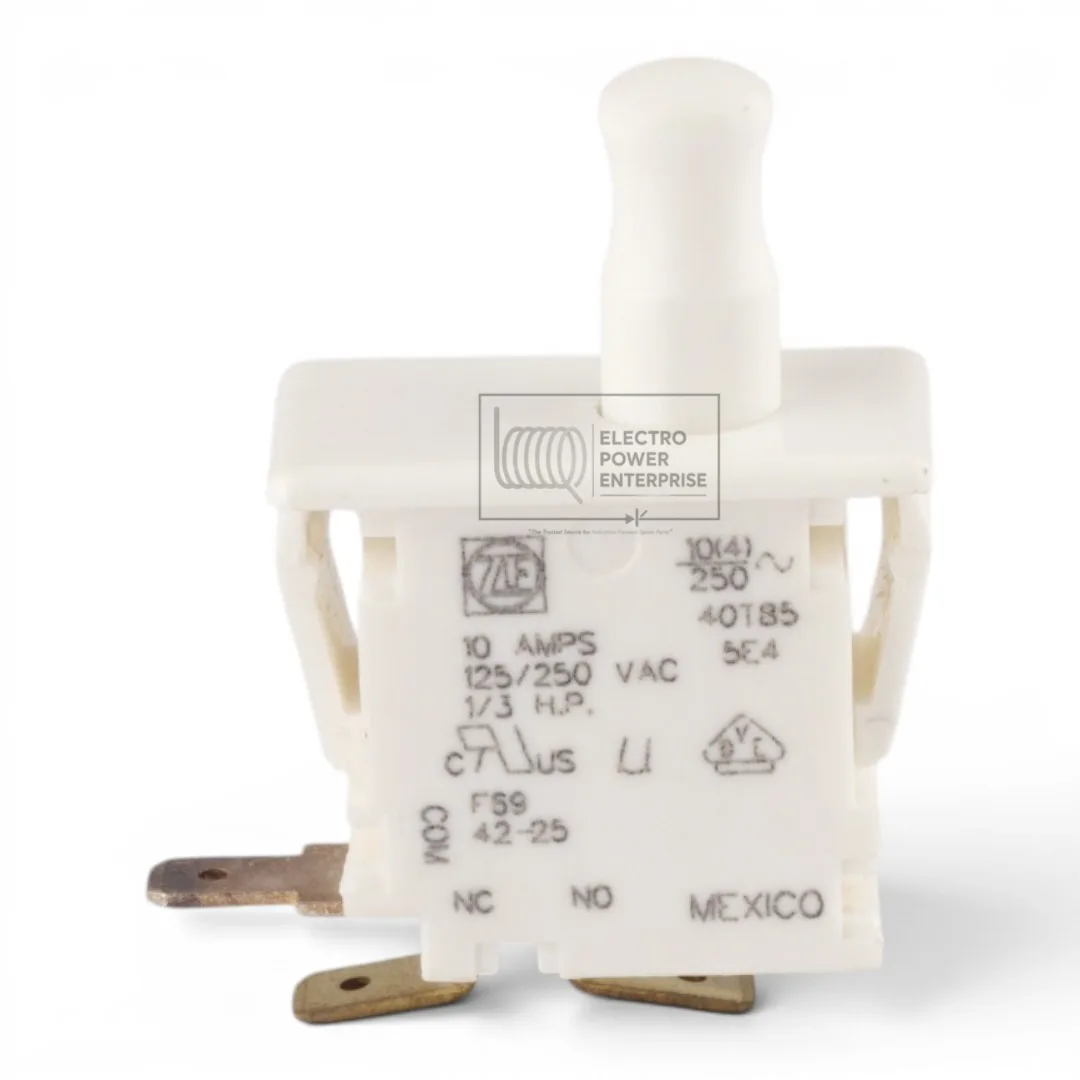

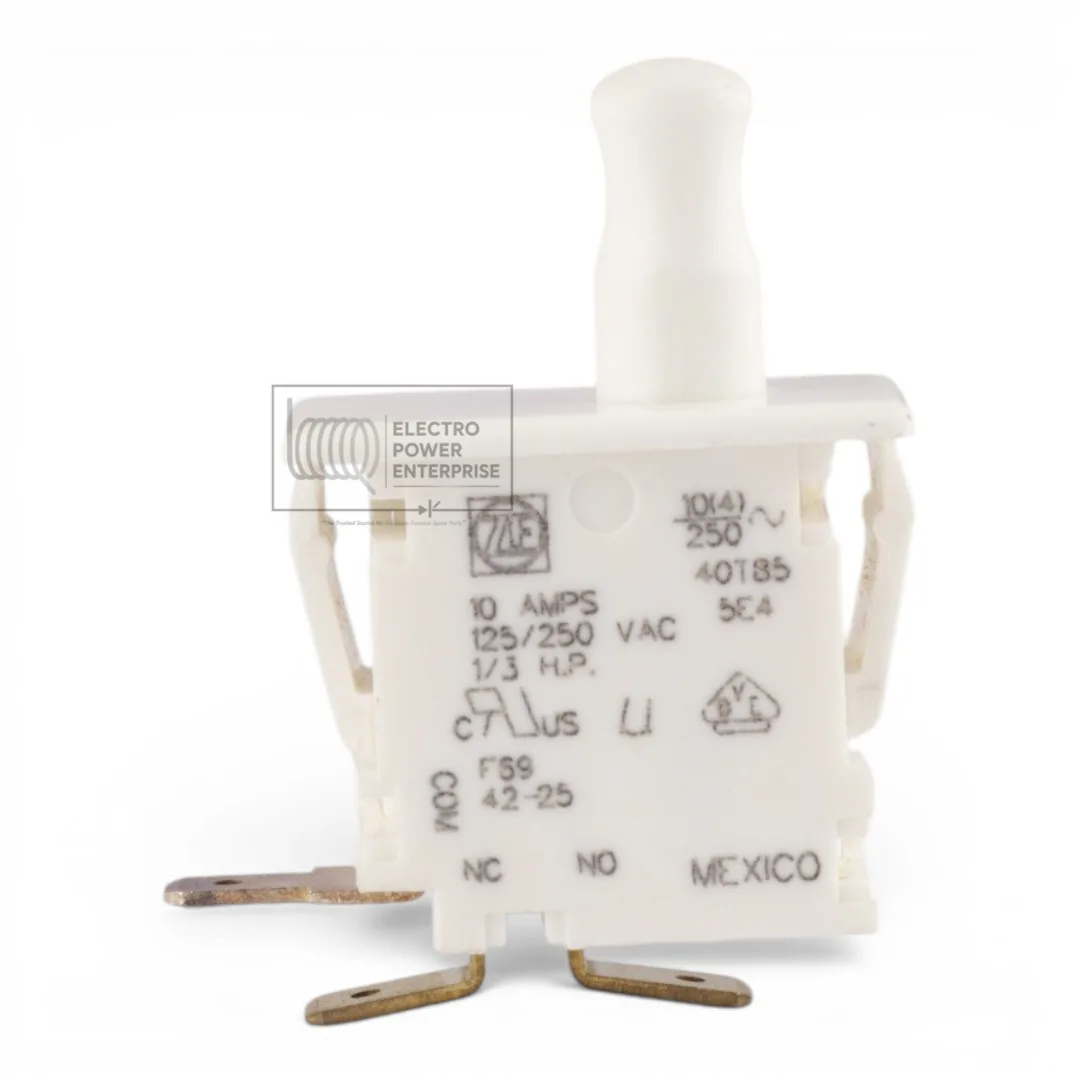

E69-10A PANEL MOUNT CHERRY PUSH BUTTON SWITCH
E69-10A Panel Mount Cherry Limit Switch Switch (SPDT, 10A, 125/250 VAC) for Induction Furnace Control Panels
Description
The E69-10A Panel Mount Push Button Switch is a heavy-duty single-pole snap-action push button switch designed for industrial control panels and induction furnace automation systems. It features a robust thermoplastic housing, long-life coil spring mechanism, and quick-connect terminals for reliable switching performance in demanding steel plant environments. The switch is rated for 10A at 125/250 VAC, making it suitable for control circuits, hydraulic power packs, charging systems, and auxiliary panel operations.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | Panel Mount Push Button Switch |
| Model | E69-10A |
| Circuit | SPDT (1NO + 1NC) |
| Contact Action | Snap Action |
| Rated Current | 10 A |
| Rated Voltage | 125/250 VAC |
| Mounting Type | Snap-In Panel Mount |

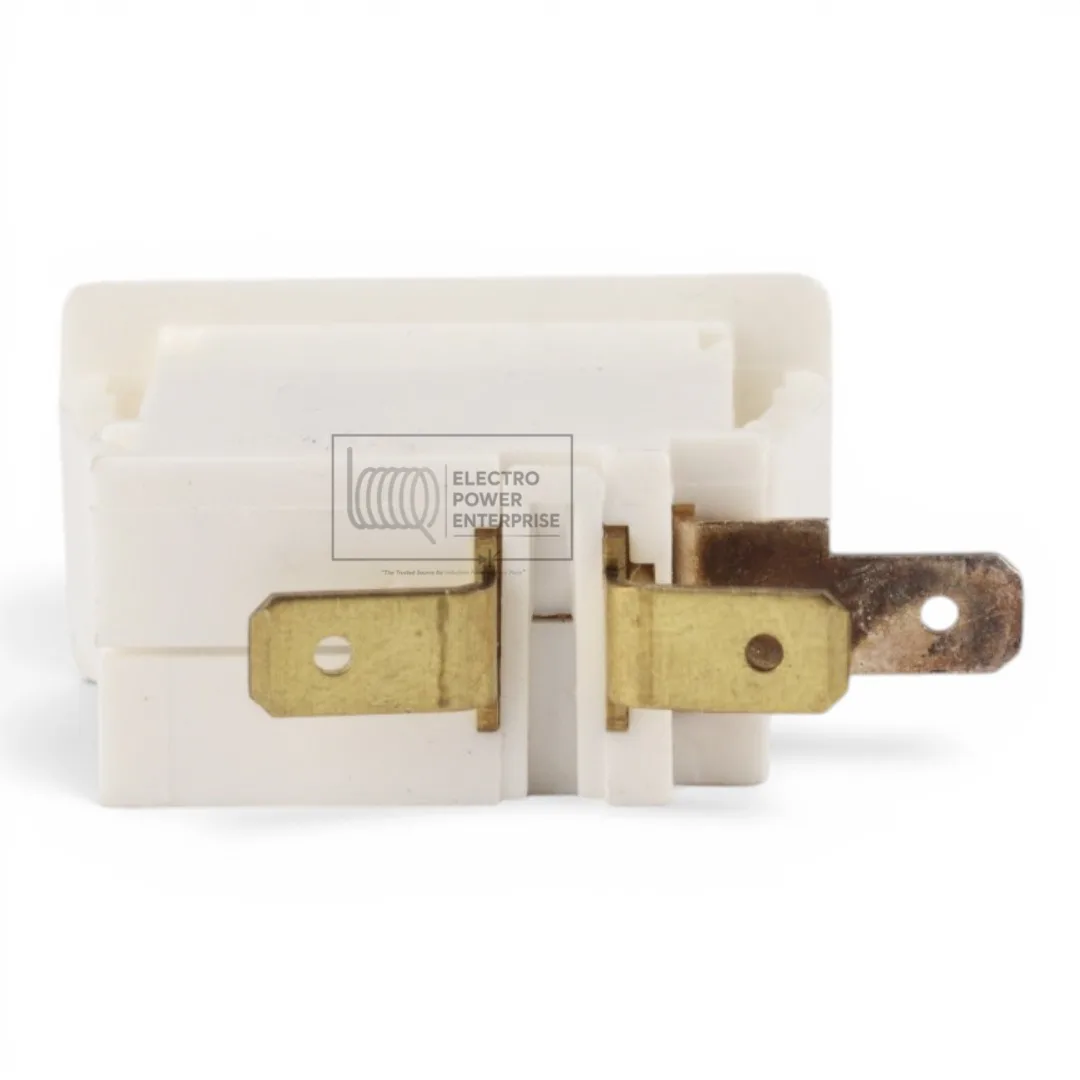

| Terminal Type | Quick Connect (4.8 mm) |
| Housing Material | Thermoplastic Polyester |
| Contact Material | Silver Alloy |
| Spring Material | Stainless Steel |
| Operating Temperature | -40°C to +85°C |
| Protection Class | IP40 |
| Flammability Rating | UL94 V-0 |
- Please contact us for any question regarding the product.
Applications
- Induction Furnace Control Panel
- Furnace Start/Stop Push Buttons
- Electrical Automation Panels
- Machine Tools
- Industrial Equipment
🔧 Suitable For
Suitable for induction furnace control panel.
- Manufacturer names are mentioned solely to indicate typical applications and compatibility.
