Description

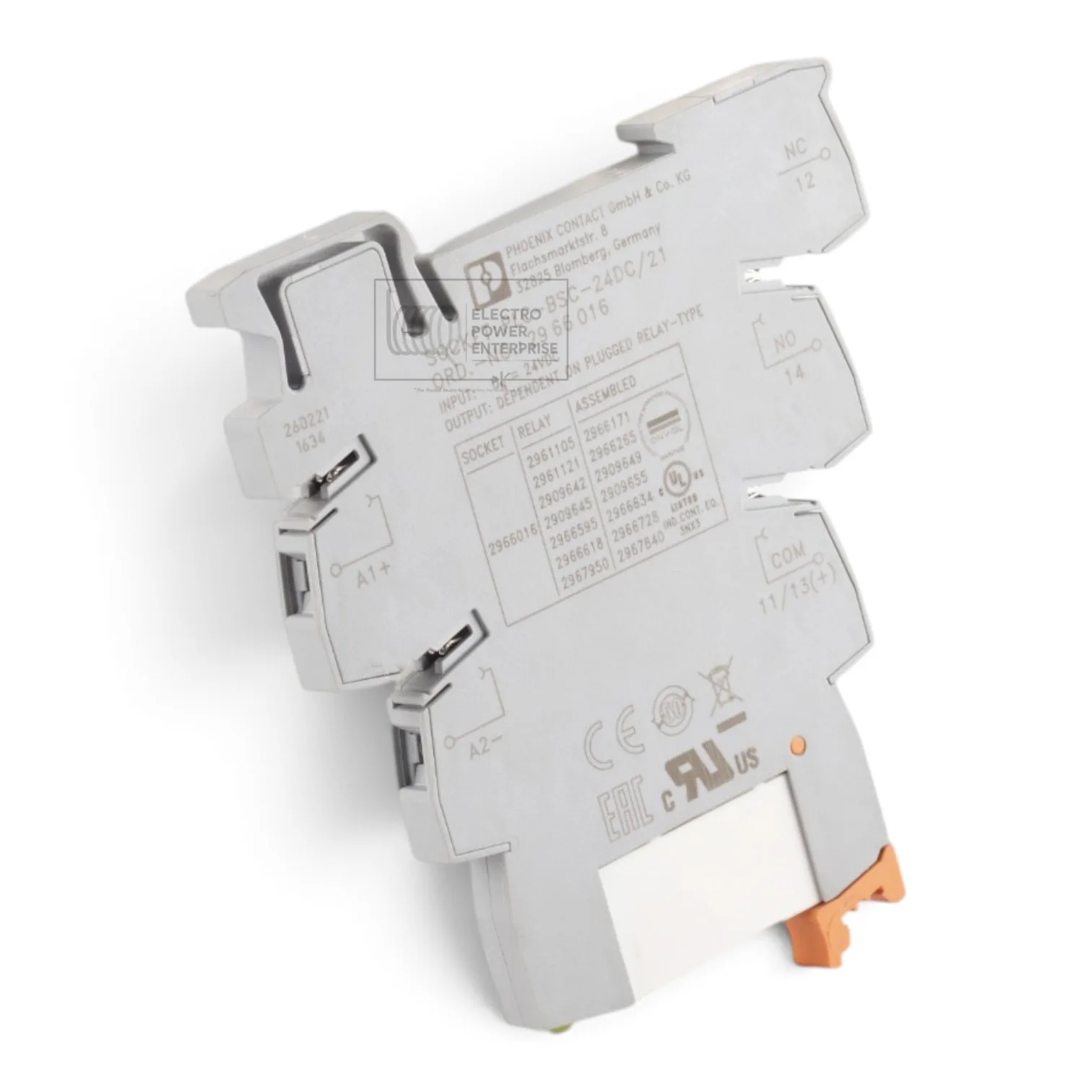

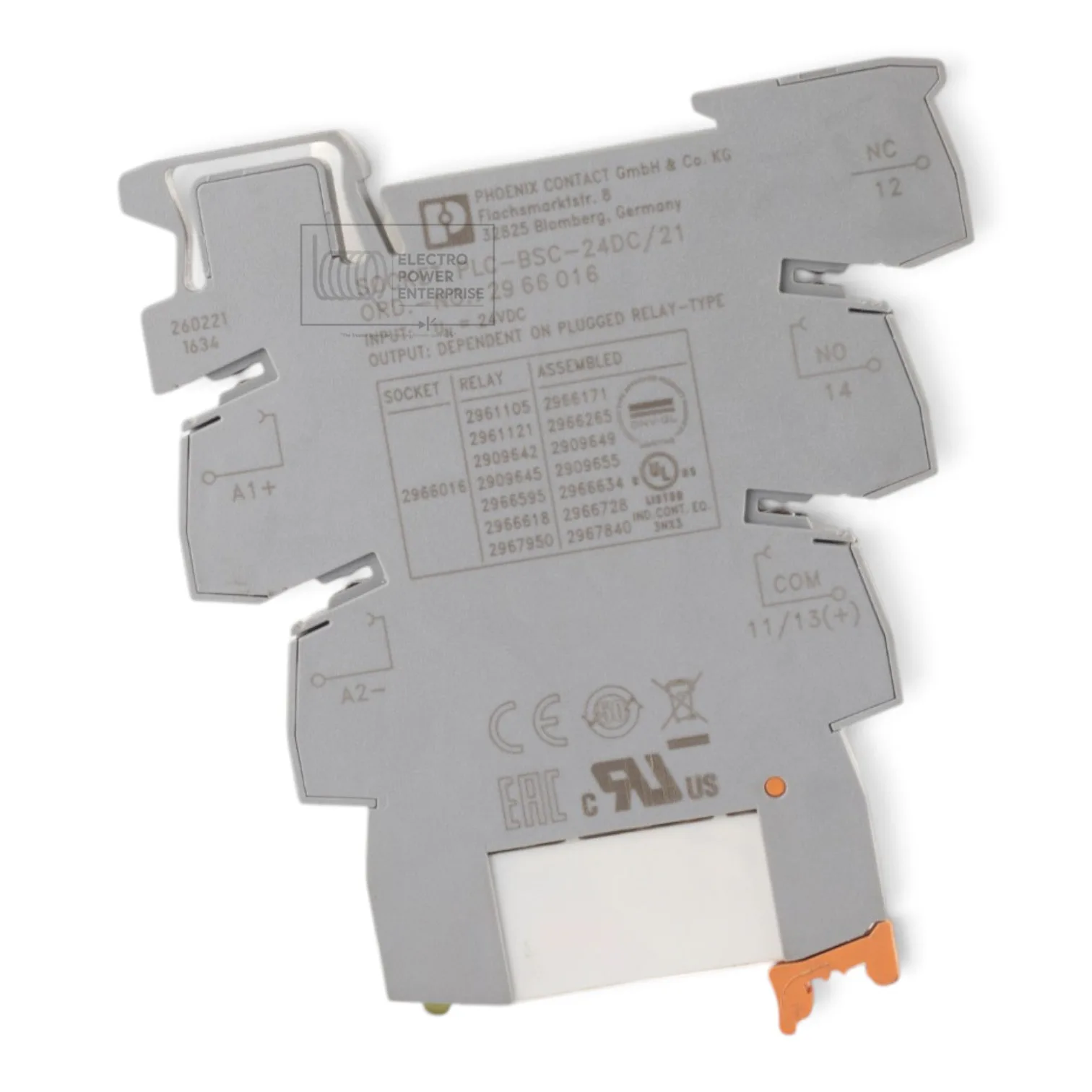

Phoenix Contact PLC-RSC-24DC/21 Relay Module (2966171) | 24V DC PLC Interface Relay for Induction Furnace Control Panels
DIN Rail PLC Interface Relay Module for Induction Furnace Control Panels
Description
The PLC-RSC-24DC/21 Relay Module is a slim DIN rail-mounted PLC interface relay designed for dependable switching and electrical isolation in induction furnace control systems. Featuring a 24 VDC coil, 1 changeover (SPDT) power contact, integrated LED status indication, reverse polarity protection, and interference suppression circuitry, it provides reliable operation in demanding steel plant environments.
Its compact 6.2 mm design makes it ideal for PLC output interfaces, furnace automation, hydraulic systems, cooling circuits, and industrial control panels.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | PLC Interface Relay Module |
| Manufacturer | Phoenix Contact |
| Model | PLC-RSC-24DC/21 |
| Part Number | 2966171 |
| Coil Voltage | 24 V DC |
| Contact Configuration | 1 Changeover Contact (SPDT) |
| Contact Material | AgSnO |
| Continuous Contact Current | 6 A |
| Maximum Switching Voltage | 250 V AC/DC |
| Maximum Inrush Current | 10 A (4 sec.) |
| Input Current | 9 mA (Typical) |
| Response Time | 5 ms |
| Release Time | 8 ms |
| Mechanical Life | 20 Million Operations |
| Operating Voltage Indicator | Yellow LED |
| Mounting | DIN Rail (NS 35) |
| Operating Temperature | -40°C to +70°C |
- Please contact us for any question regarding the product.
Applications
- Induction Furnace PLC Panels
- Power Control Panels
- Hydraulic Control Systems
- Cooling Water Control Systems
- Furnace Automation
- Charging Machine Control Panels
- Interlocking Circuits
- Industrial PLC Systems
- Steel Plant Automation
🔧 Suitable For
Suitable for induction furnace systems manufactured by Electrotherm, Inductotherm, Megatherm, ABP, and other OEM induction furnace manufacturers.
- Comapny names are mentioned solely to indicate typical applications and compatibility.
