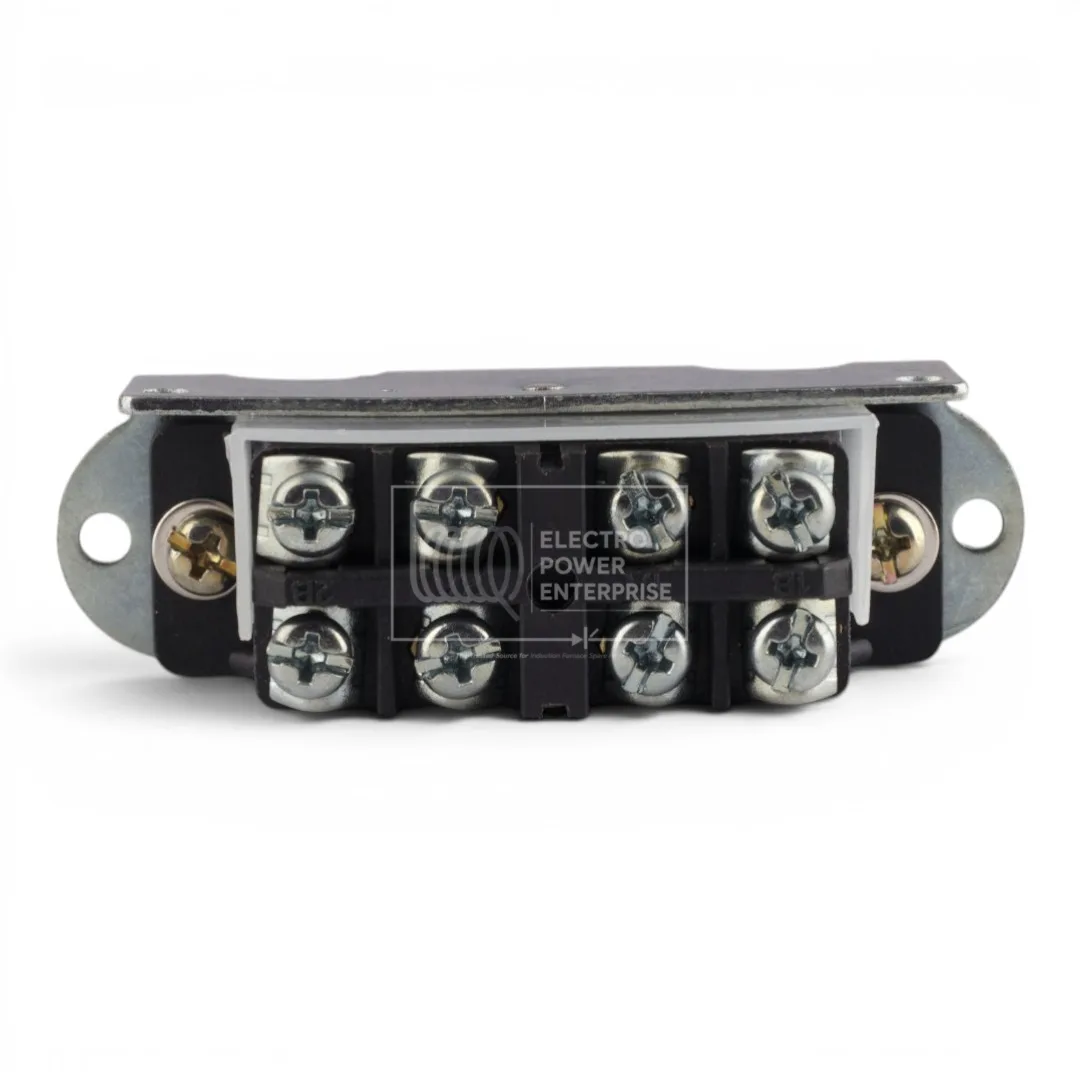

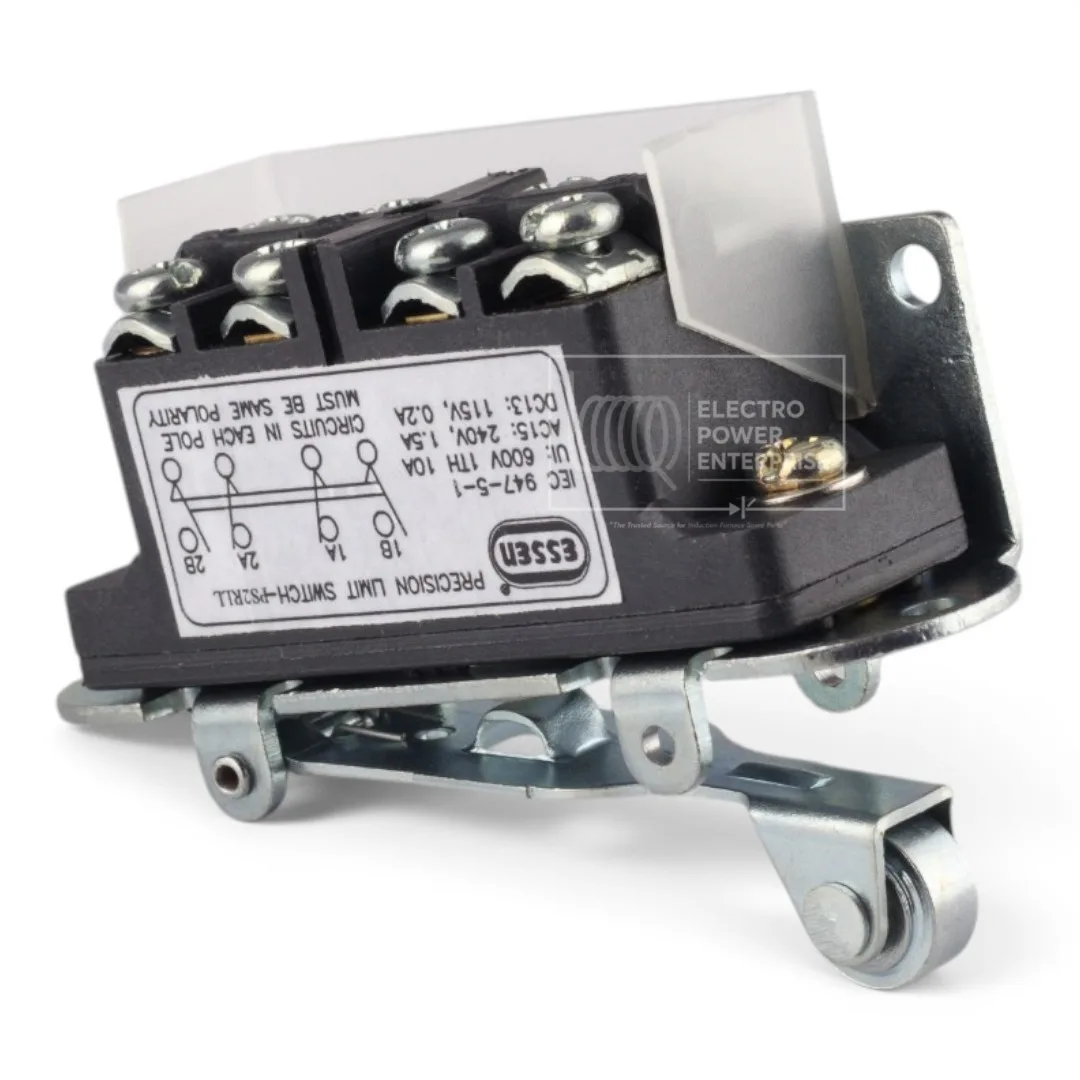

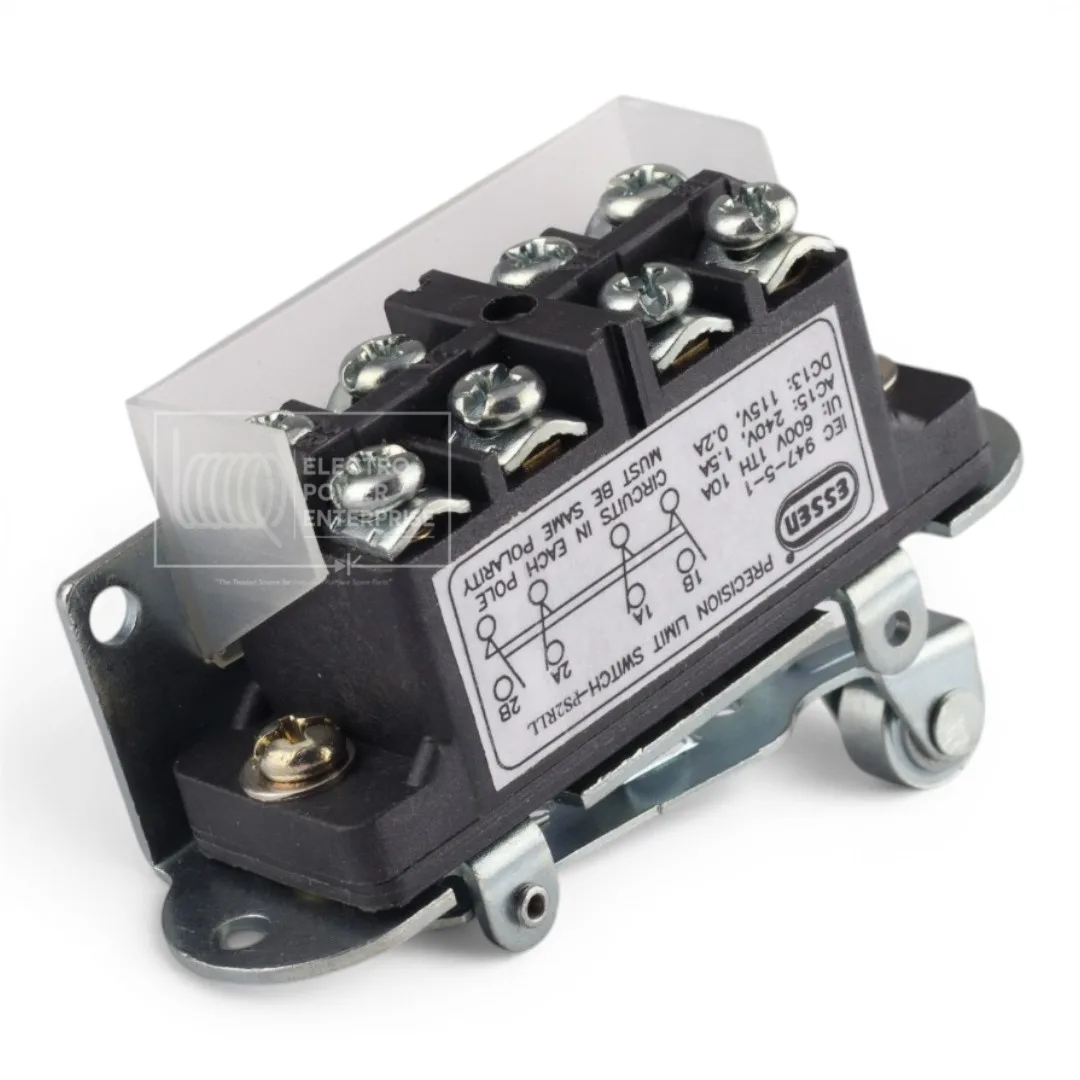

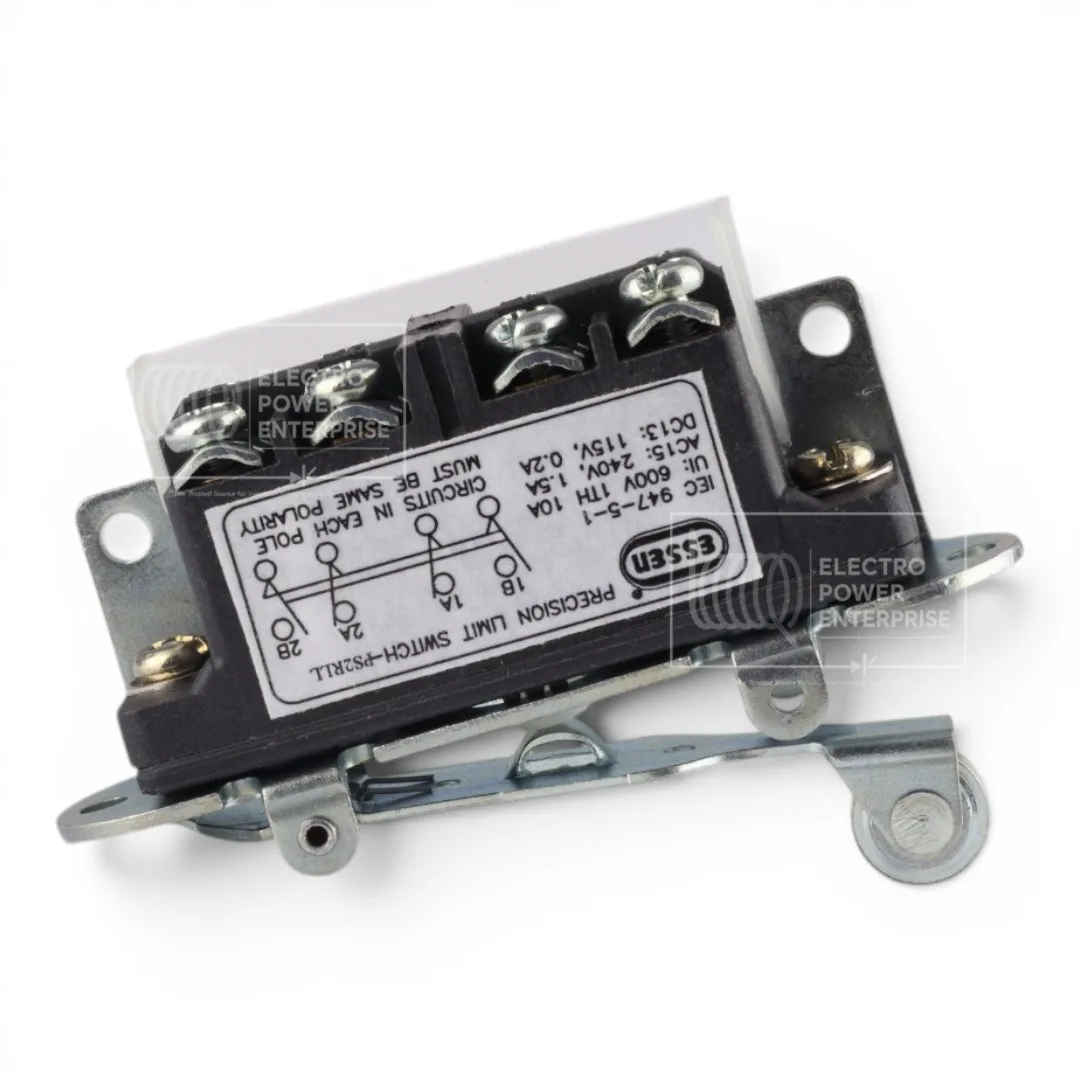

MICRO LIMIT SWITCH PSRL-L-2
Micro Limit Switch PSRL-L-2 for Induction Furnace Change Over and Selector Switch
Description
The PSRL-L-2 Micro Limit Switch is a heavy-duty precision snap-action limit switch designed for reliable position sensing in induction furnace systems. The PS series is designed for high reliability with a mechanical life of up to 10 million operations and is available in double-pole (2NO + 2NC) configurations.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | Precision Micro Limit Switch |
| Model | PSRL-L-2 |
| Switch Action | Snap Action |
| Contact Configuration | 2NO + 2NC (Double Pole) |
| Actuator Type | Roller Lever |
| Mounting | Left-Hand Roller Lever |
| Mechanical Life | 10 Million Operations (Minimum) |
| Electrical Life | 500,000 Operations @ 5A, 250V AC Resistive Load |
| Insulation Voltage | 600 VAC |
| Thermal Current | 10 A |
| Operating Temperature | -10°C to +70°C |
| Terminal Capacity | Up to 2.5 mm² Conductors |
| Dielectric Strength | 1000 VAC (Between Contacts), 1500 VAC (Between Contacts & Ground) |
- Please contact us for any question regarding the product.
Applications
- Induction Furnace Change Over Switch
- Induction Furnace Selector Switch
🔧 Suitable For
Suitable for Inductotherm induction furnace Change Over and Selector Switch
- Manufacturer names are mentioned solely to indicate typical applications and compatibility.
