SCR INV REP0878LS20E/R200CH20
Description

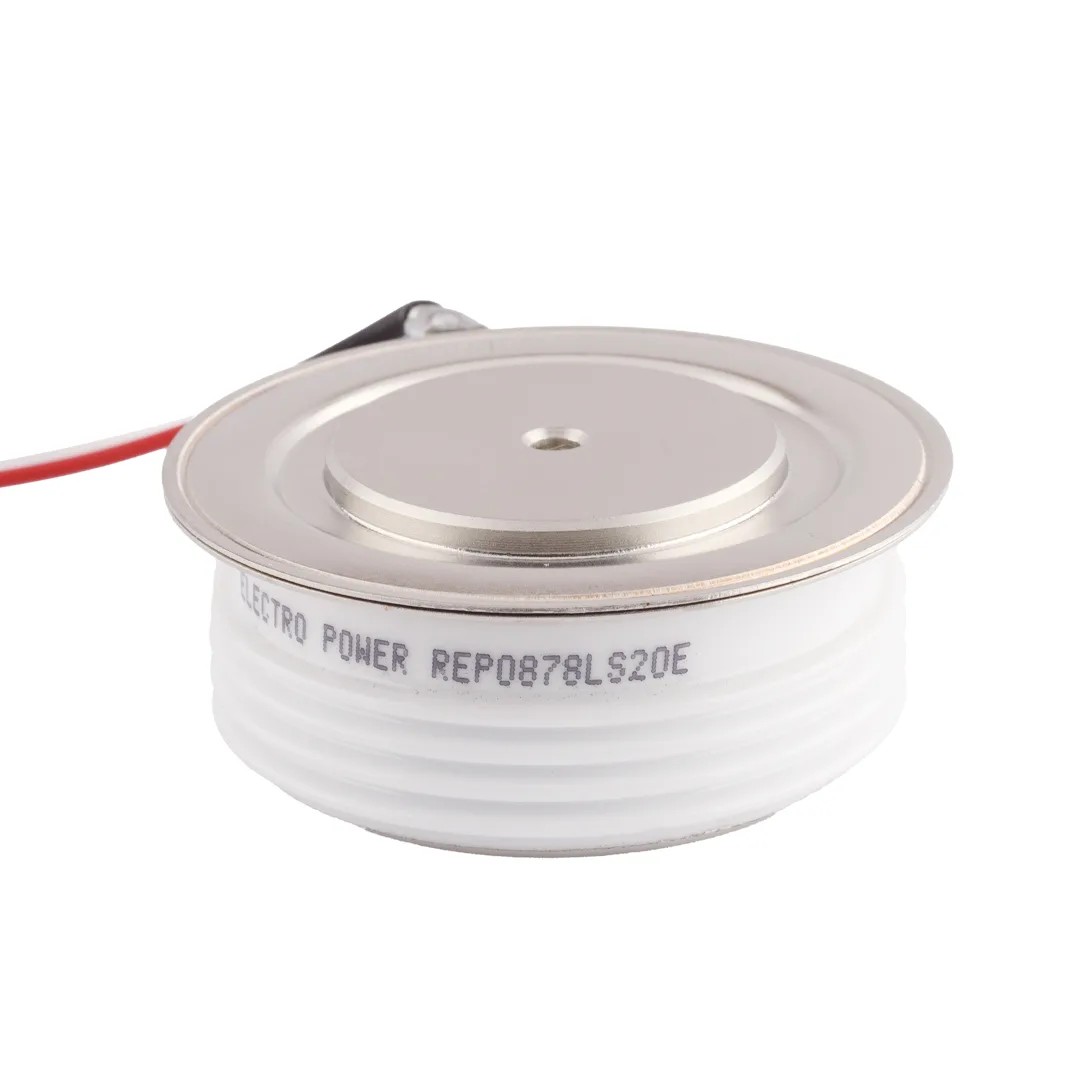

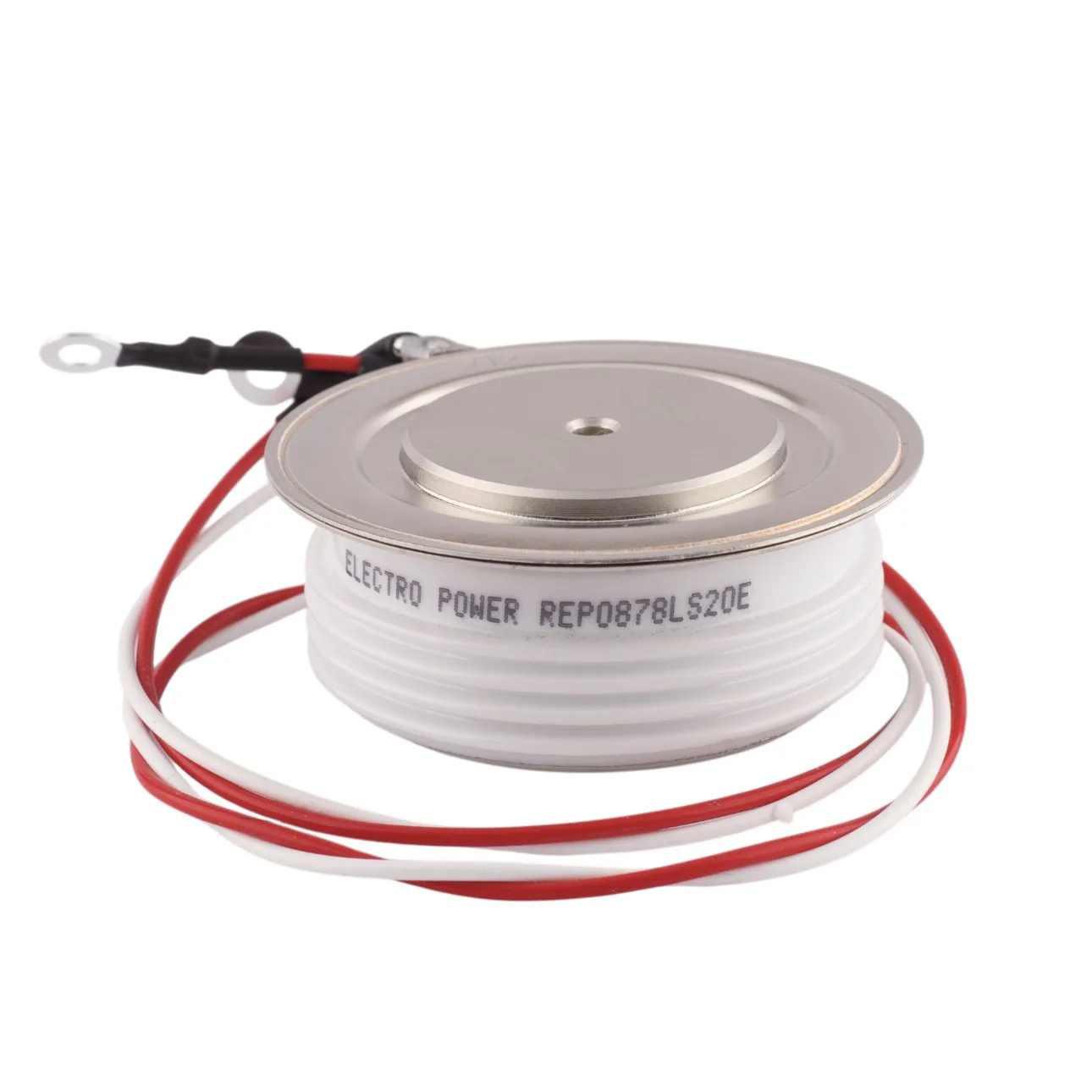

SCR REP0878LS20E Inverter SCRs (Silicon Control Rectifier) are fast-switching thyristors designed for high-frequency inverter applications. They offer low switching losses, high reliability, and excellent thermal performance-ideal for induction furnaces, inverter panels, and industrial heating systems.
Technical Specification
| Parameter | REP0878LS20E/R200CH20 |
|---|---|
| Device Type | Inverter SCR |
| Mounting | Disc Type |
| Current Rating (I RMS) | 878 A |
| Voltage Rating (VRRM) | 2000 V |
| dV/dt | 500 V/sec |
| I^2T | 0.28 x 10^6 A^2s |
| Turn off time | 25 s |
| Size | 34/26 mm (Contact dia/ Height) |
| Operating Temp | -40°C to +125°C |
Applications
- Induction furnace inverter circuits
- High-frequency heating systems
- Power inverter panels
- Industrial converters
- Resonant inverter systems
Suitable For
Suitable for induction furnace power supply supplied by Electrotherm, Inductotherm, Megatherm and other OEMs.
- Manufacturer names are referenced solely to indicate typical applications and compatibility.
