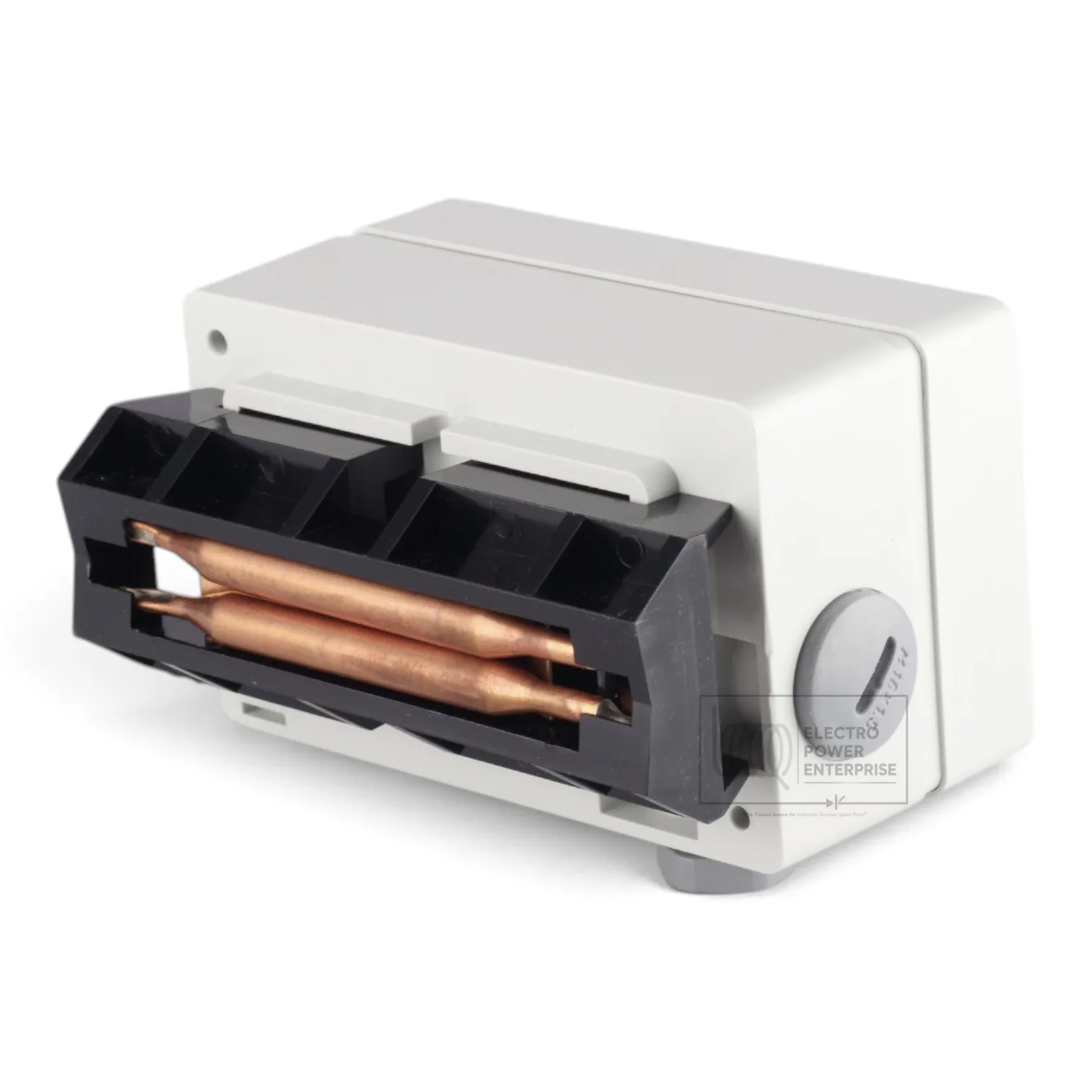

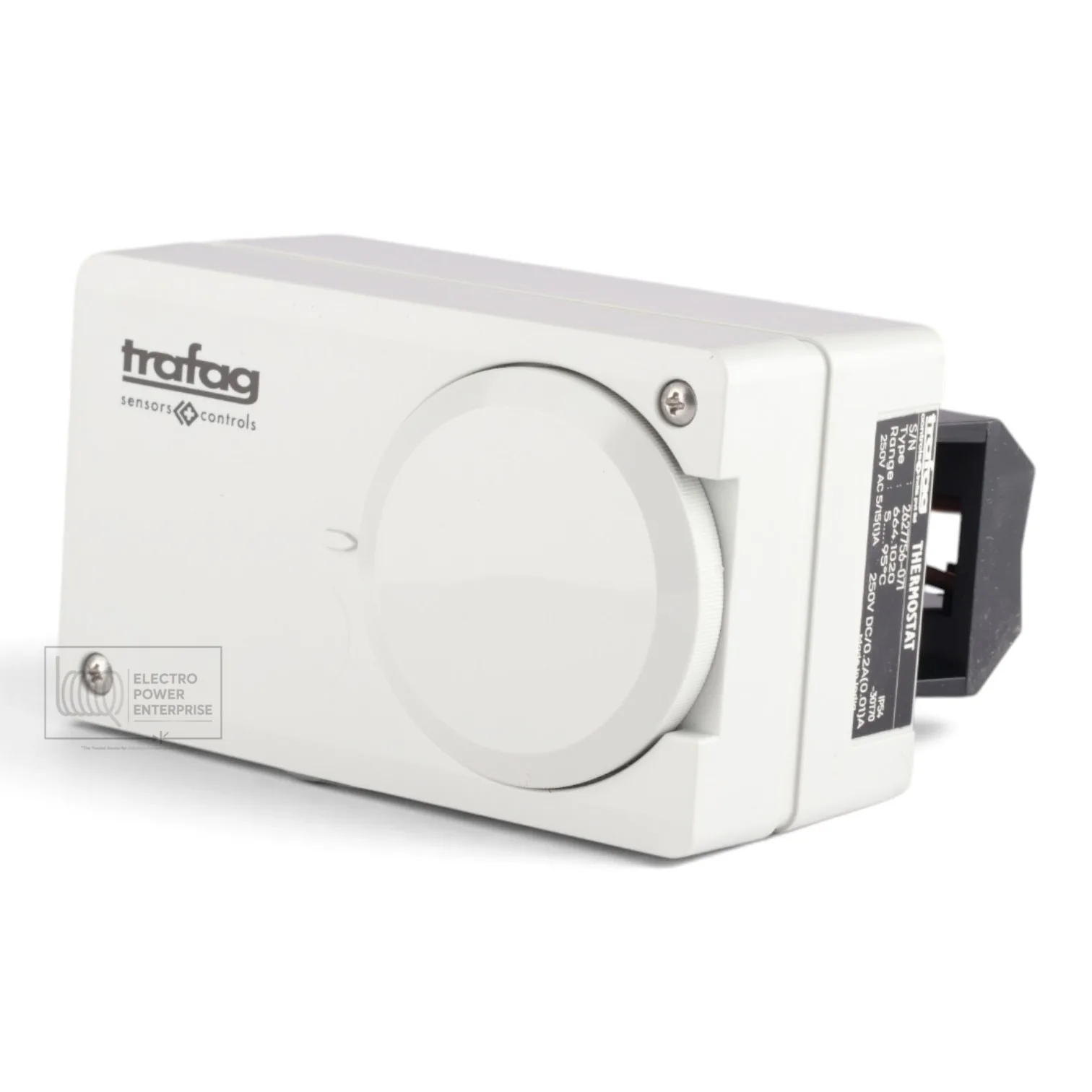

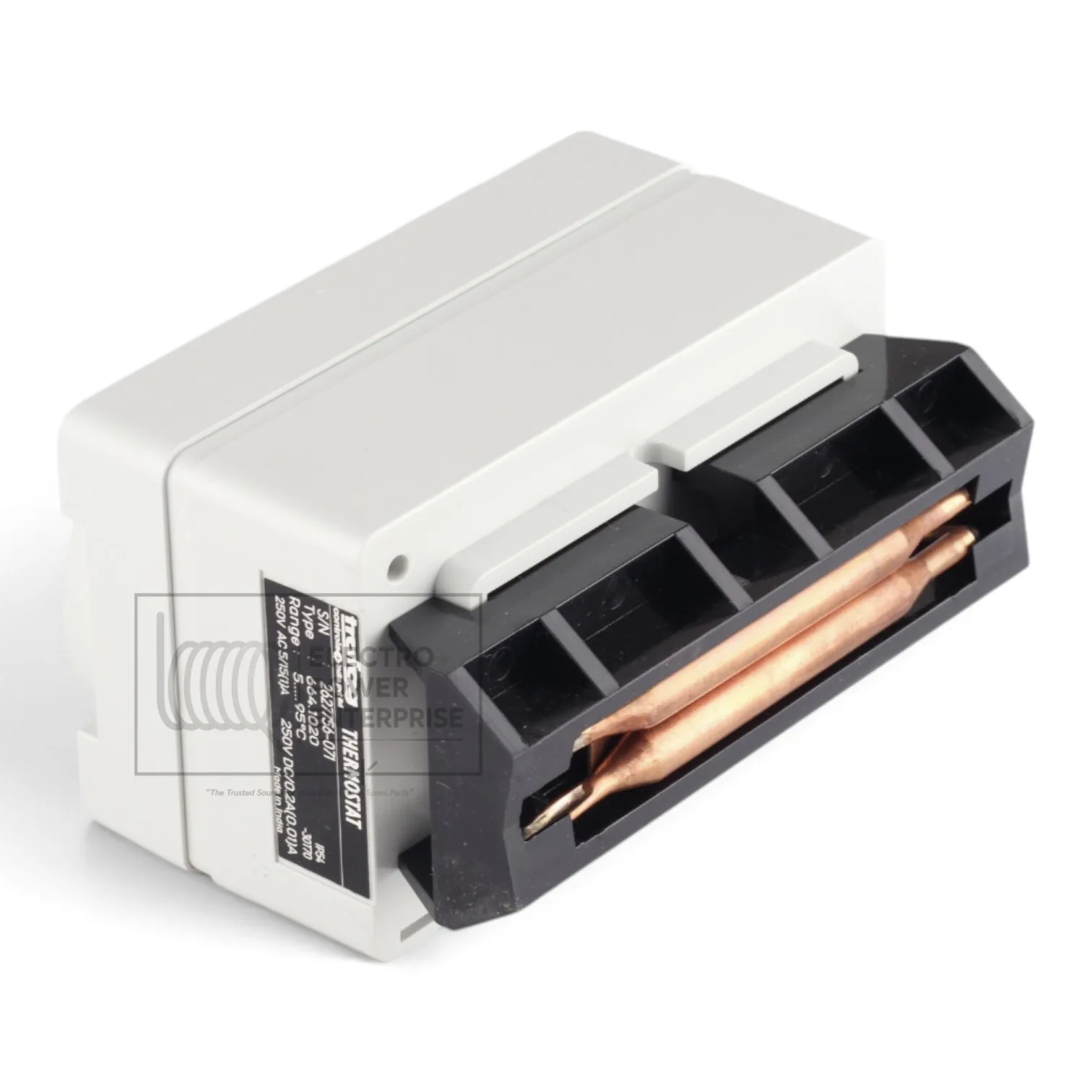

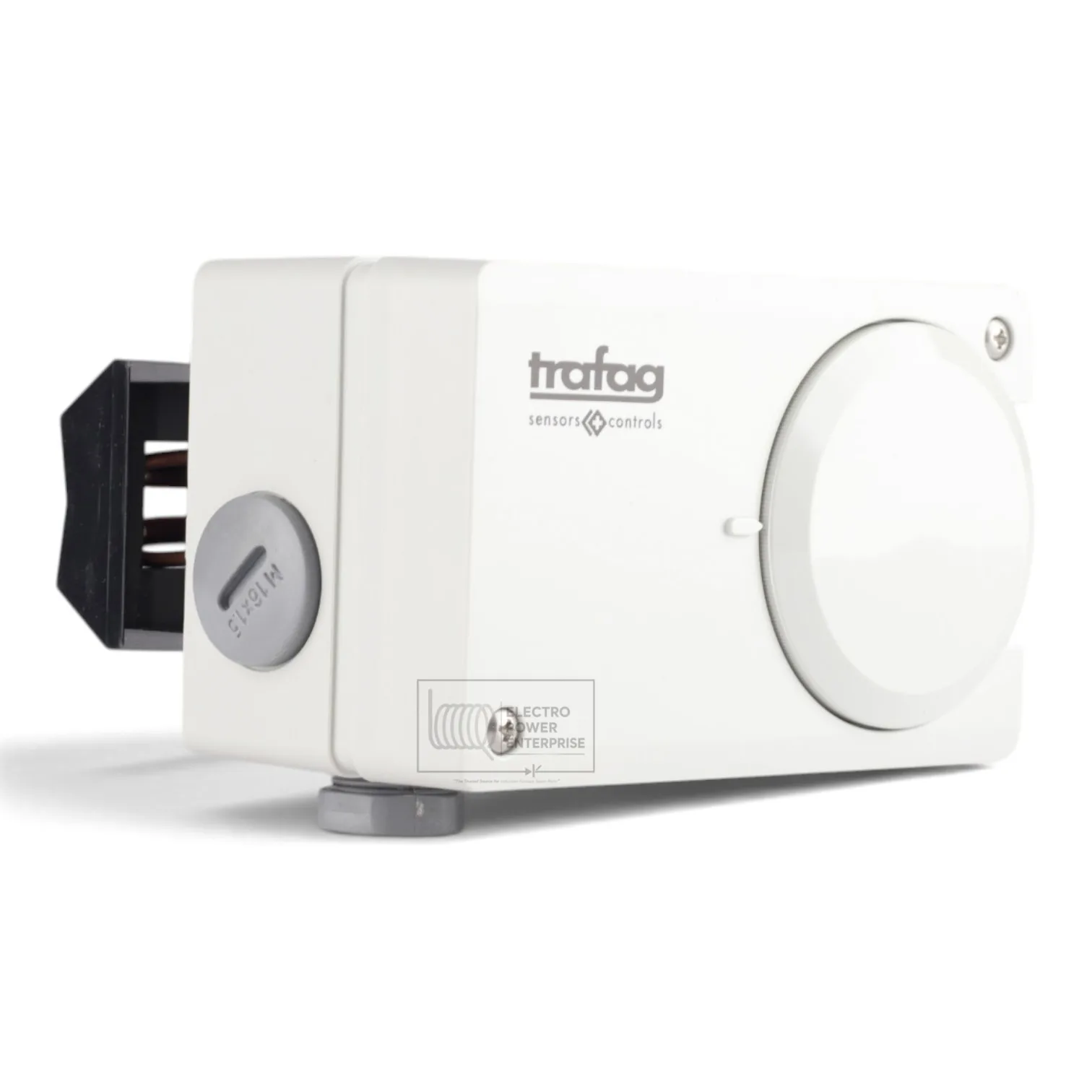

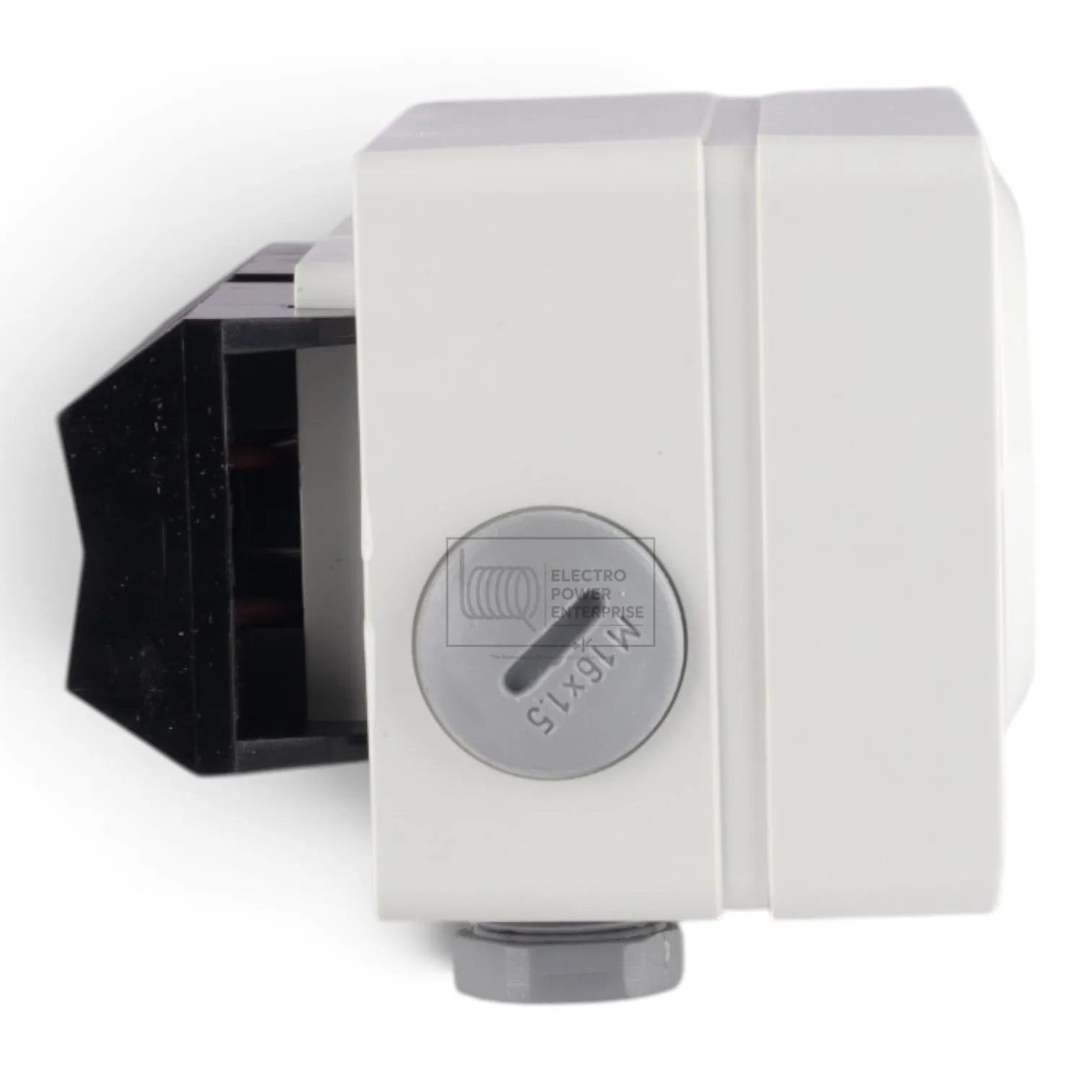

Induction Furnace Temperature Control – TRAFAG MSP 95
Industrial Temperature Thermostat for Induction Furnace Applications
Description
The Pipe Mounting Thermostat is designed for reliable temperature monitoring and switching in industrial applications. It is particularly suitable for induction furnace cooling systems, water treatment systems, process equipment, pipes, and barrels.
Technical Specification
| Parameter | Specification |
|---|---|
| Product | Induction Furnace Temperature Thermostat |
| Series | Trafag MP/MSP 663/664 |
| Application | Pipe Mounting Thermostat |
| Temperature Range | Model dependent: -10°C to +110°C |
| Sensor | Copper Sensor Bulb |
| Switching Element | Bimetal Switch |
| Reset | Auto Reset |
| Protection | IP54 |
| Ambient Temperature | -30 to +70°C |
| Storage Temperature | -30 to +50°C or -30 to +85°C, depending on range |
| Housing Material | PC/ABS Blend V0 |
| Installation | Any position |
| Cable Gland | M16 × 1.5 |
| Cable Diameter | 4-9 mm |
| Terminal Screw | 3 × 1-2.5 mm² |
| Approx. Weight | 220 g |
| Insulation Resistance | >2 MΩ |
| Mechanical Life | 20 million cycles |
Standard Models
| Model | Temperature Range | Switching Differential | Sensor Max. Temperature |
|---|---|---|---|
| MSP95 | +5 to +95°C | 3.7-14°C adjustable | 105°C |
Applications
Suitable for temperature monitoring in:
Induction furnace cooling-water systems
Induction furnace temperature control
Furnace cooling pipelines
Water treatment systems
Industrial process technology
Pipe and barrel temperature monitoring
Hydraulic and industrial cooling systems
🔧 Suitable For
Suitable for induction furnace systems manufactured by Electrotherm, Inductotherm, Megatherm, ABP, and other OEM induction furnace manufacturers.
- Comapny names are mentioned solely to indicate typical applications and compatibility.
