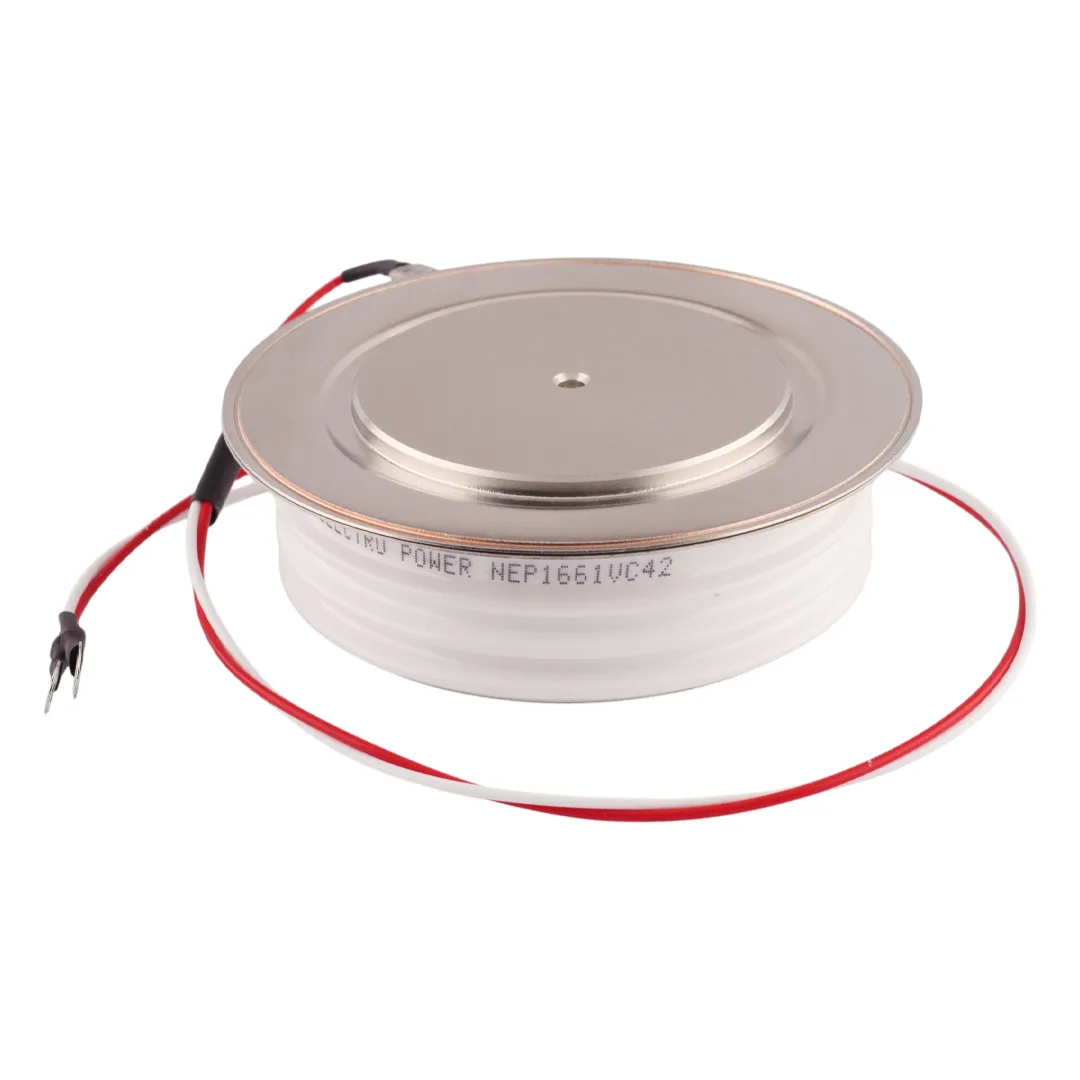

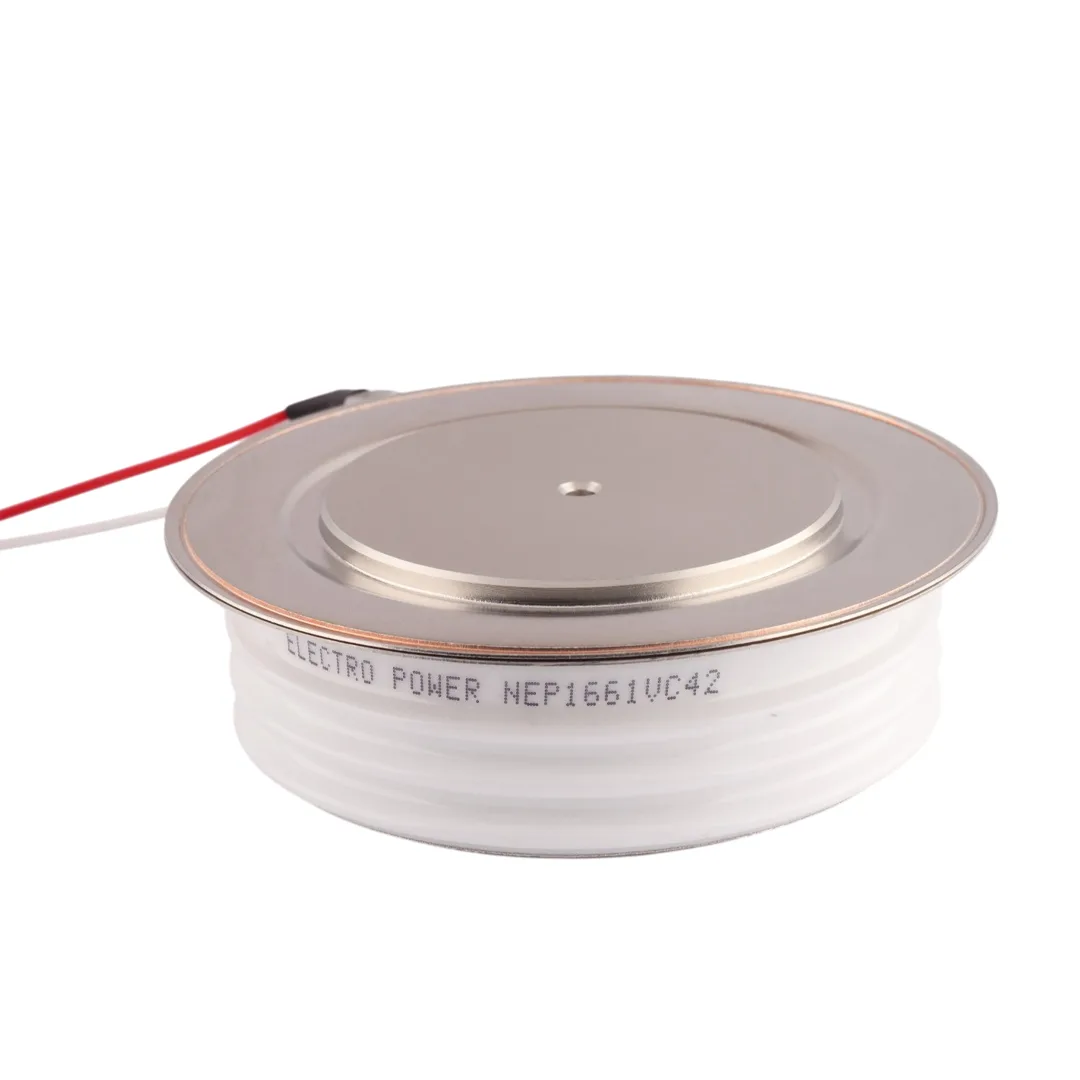

SCR CONV NEP1661VC42
Description
SCR NEP1661VC42 Converter SCRs (Silicon Controlled Rectifiers) are high-power semiconductor devices used for controlled rectification in industrial power systems. Designed for high current, high voltage, and reliable performance in induction furnace rectifiers and heavy-duty electrical applications.
Technical Specification
| Parameter | NEP1661VC42 |
|---|---|
| Device Type | Converter SCR |
| Mounting | Disc Type |
| Current Rating (IF AV) | 1661 A |
| Voltage Rating (VRRM) | 4200 V |
| dV/dt | 500 V/sec |
| I^2T | 2.6 x 10^6 A^2s |
| Size | 63/34 mm (Contact dia/ Height) |
| Operating Temp | -40°C to +125°C |
Applications
- Induction furnace rectifier systems
- AC to DC controlled converters
- Industrial power control panels
- Battery charging systems
- Motor speed control
Suitable For
Suitable for induction furnace power supply supplied by Electrotherm, Inductotherm, Megatherm and other OEMs.
- Manufacturer names are referenced solely to indicate typical applications and compatibility.
