Description

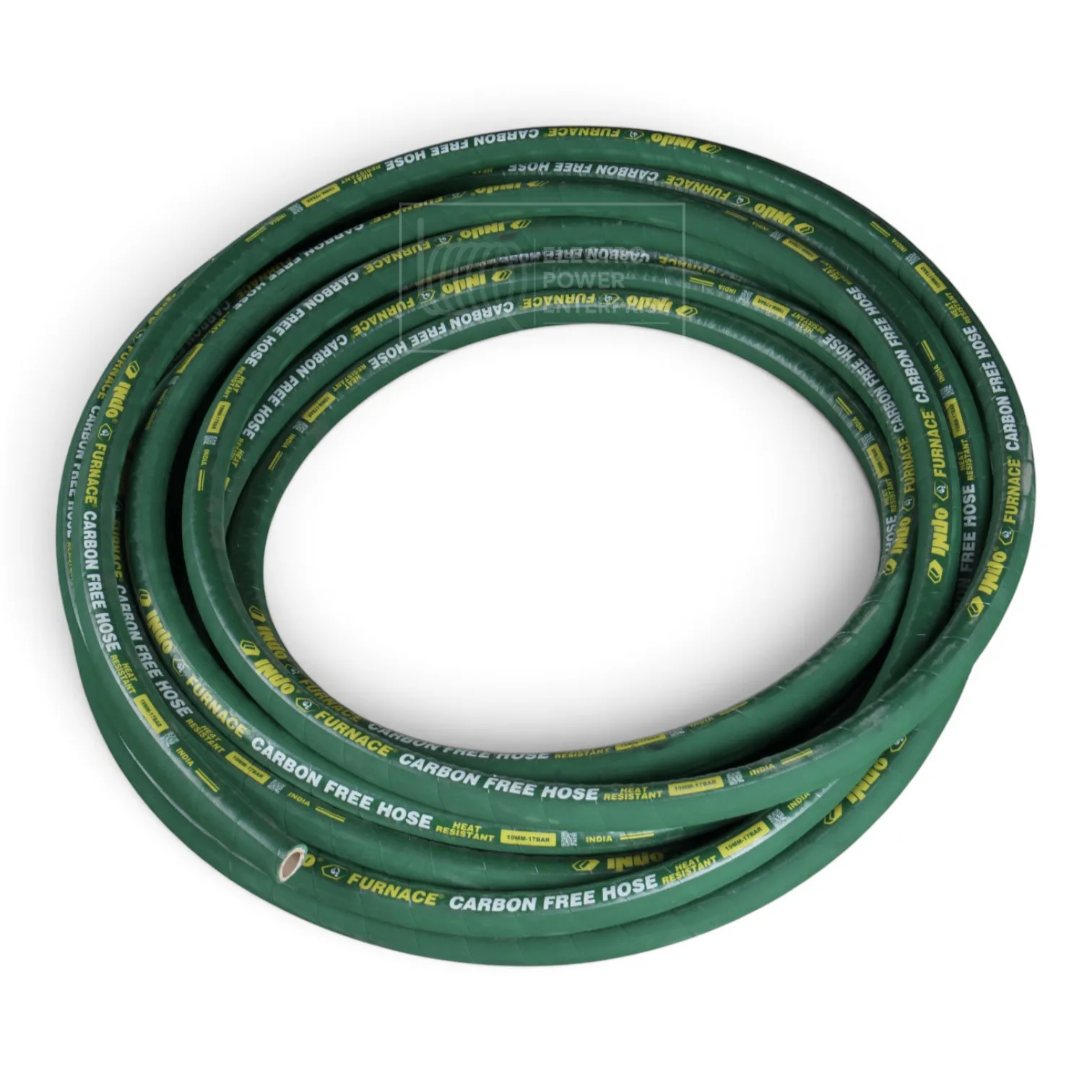

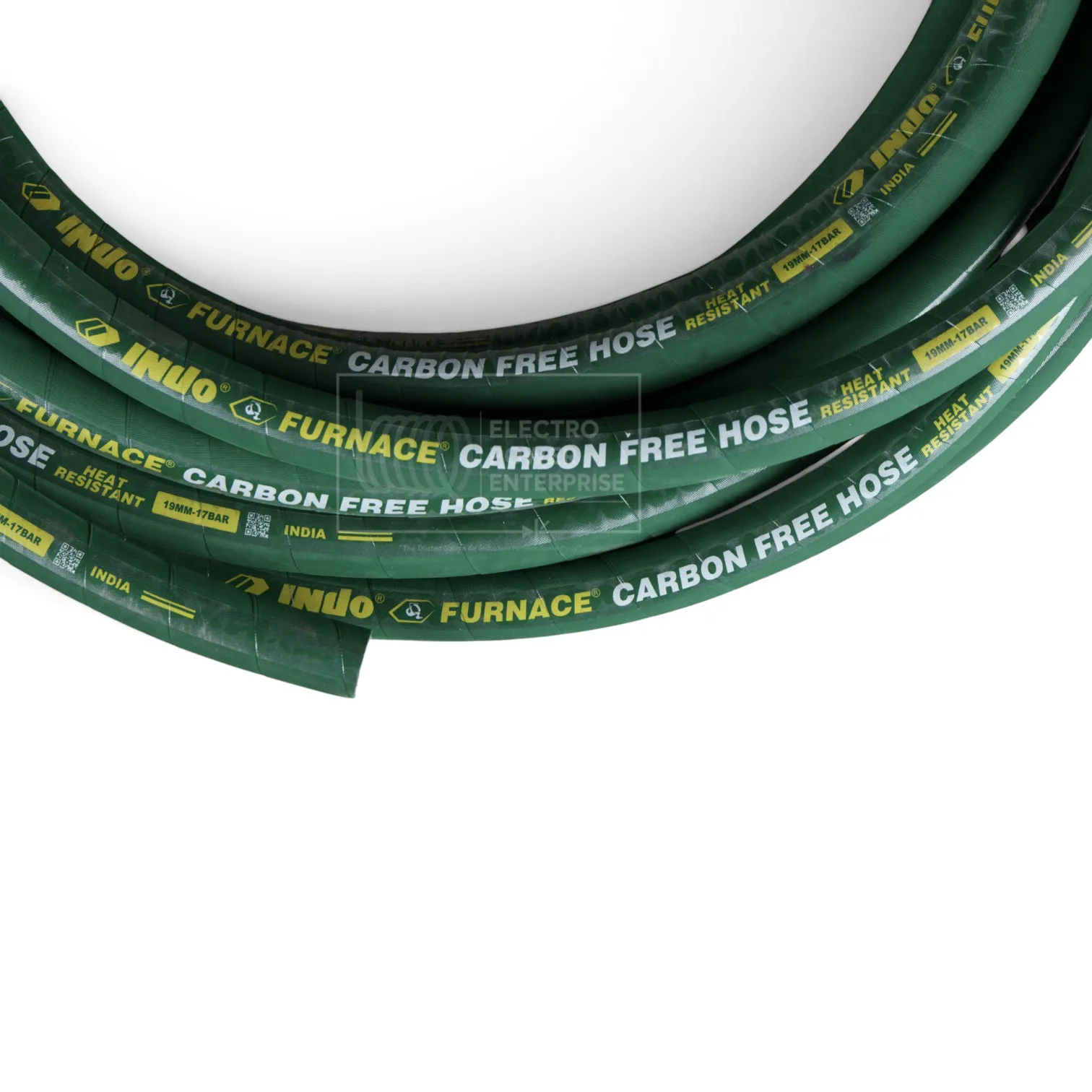

INDO CARBON FREE HOSE PIPE – 20 MM ID
20 mm Indo Carbon Free Hose Pipe for Induction Furnace Cooling & Water Cooled Cable Applications
Description
Indo Furnace Carbon Free Hose Pipe is specially engineered for induction furnace coolant and flexible power cable cooling applications where low electrical leakage and reliable water circulation are critical. Manufactured from non-conductive rubber with textile reinforcement and a nitrile rubber cover, this hose offers excellent heat resistance, flexibility, and long service life in demanding steel plant environments.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | Carbon Free Coolant Hose |
| Brand | INDO-MAKSSON |
| Recommended Application | Induction Furnace Coolant & Flexible Power Cable Cooling |
| Tube Material | Specially Engineered Non-Conductive Rubber |
| Reinforcement | One or Multiple Layers of Textile Reinforcement |
| Cover Material | Specially Engineered Nitrile Rubber (Green) |
| Temperature Range | -40°C to +100°C (Approx.) |
| Electrical Property | Low Current Leakage / Non-Conductive |
| Standard Colour | Inner Tube: White, Outer Cover: Green |
- Please contact us for any question regarding the product.
Available Sizes
| ID (mm) | Inch | Working Pressure |
|---|---|---|
| 12 | 1/2″ | 17.2 Bar (250 PSI) |
| 20 | 3/4″ | 17.2 Bar (250 PSI) |
| 25 | 1″ | 17.2 Bar (250 PSI) |
| 31 | 1-1/4″ | 17.2 Bar (250 PSI) |
| 38 | 1-1/2″ | 17.2 Bar (250 PSI) |
| 50 | 2″ | 14 Bar (203 PSI) |
| 56 | 2-1/4″ | 14 Bar (203 PSI) |
| 70 | 2-3/4″ | 14 Bar (203 PSI) |
| 75 | 3″ | 14 Bar (203 PSI) |
| 88 | 3-1/2″ | 14 Bar (203 PSI) |
| 100 | 4″ | 10 Bar (145 PSI) |
Applications
- Induction Furnace Coil Cooling
- Flexible Power Cable Cooling
- Furnace Panel Cooling Circuits
- Water Cooled Cable
- Electrical Cable Coolant Lines
- Steel Plant Water Cooling Systems
🔧 Suitable For
Suitable for all type of induction furnaces water cooled cable and cooling system. Mainly used by Electrotherm Induction Furnace Manufacturer.
- The company name Electrotherm is mentioned for reference purposes only to indicate typical application and compatibility.
