Description
PLC-RSC-24UC/21-21 RELAY MODULE

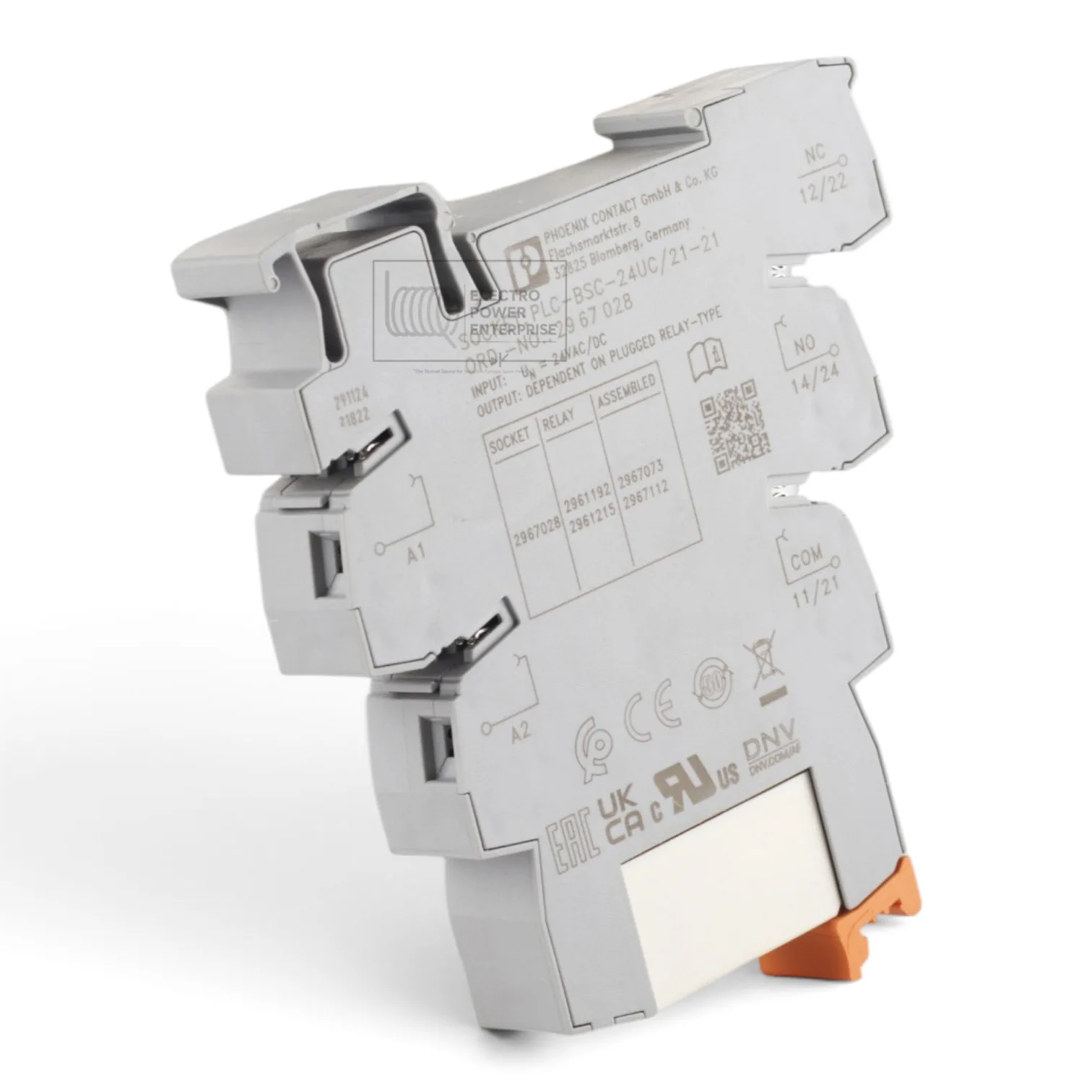

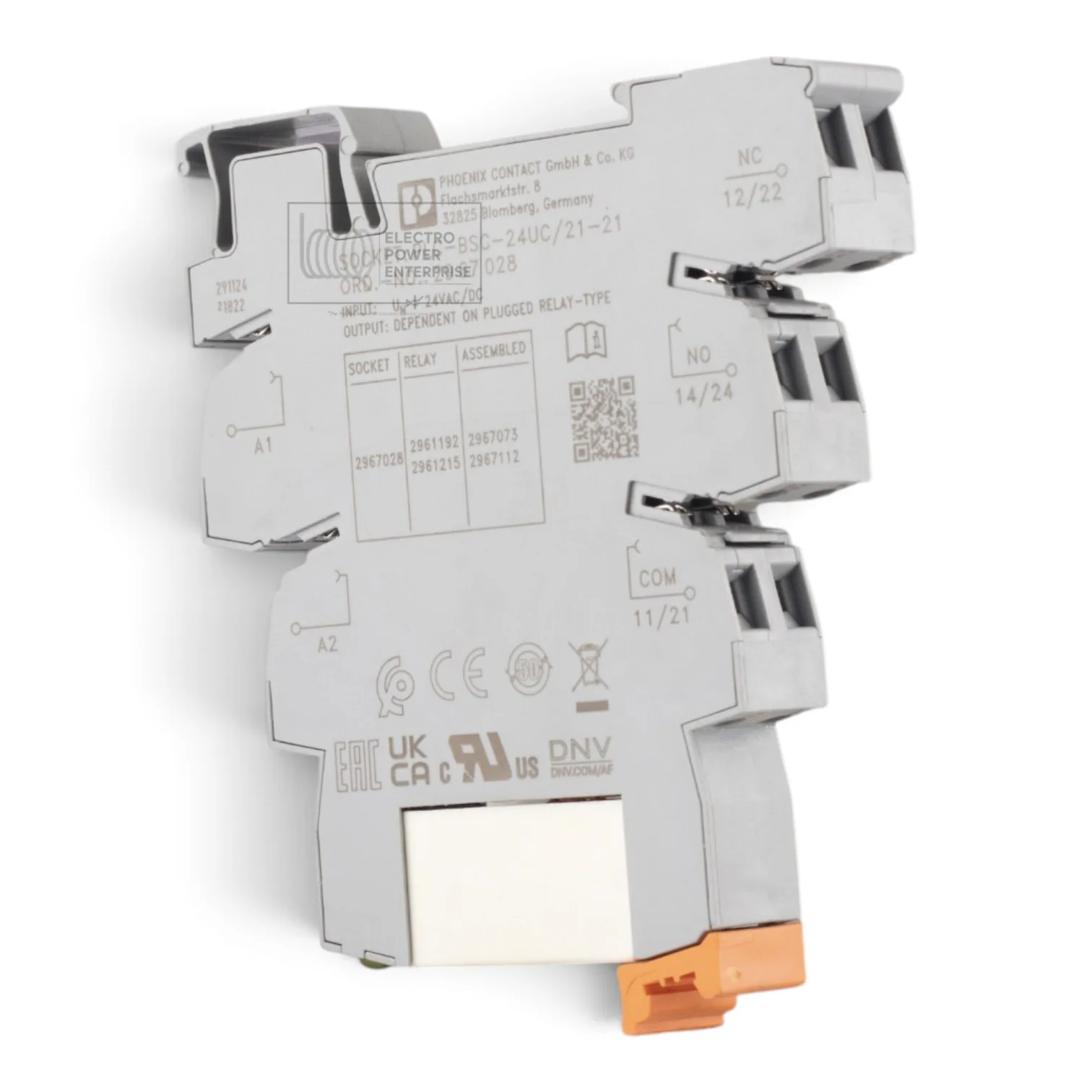

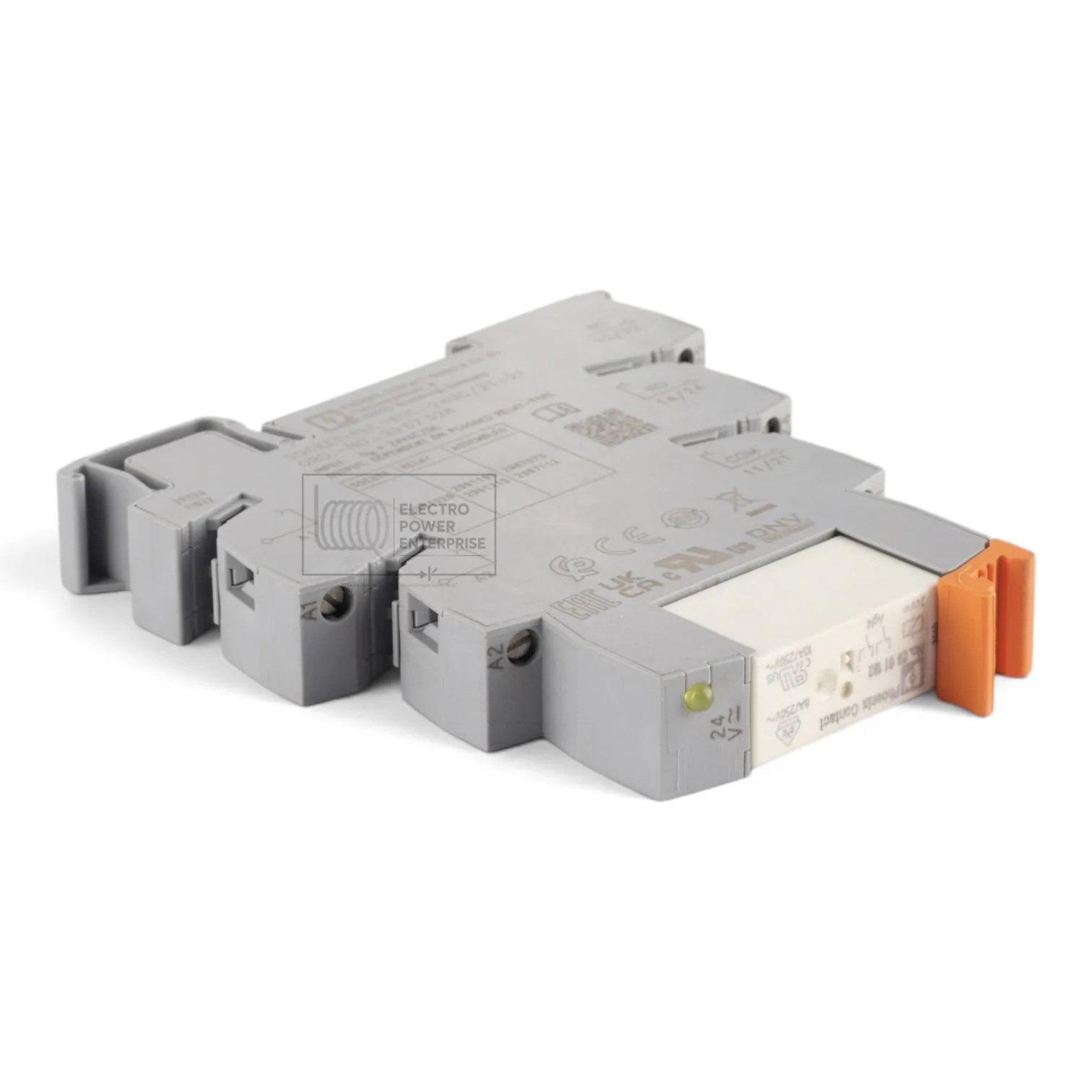

Phoenix Contact PLC-RSC-24UC/21-21 Relay Module (24V AC/DC) for Induction Furnace Control Panels – 2967073
Description
The Phoenix Contact PLC-RSC-24UC/21-21 Relay Module is a slim DIN rail-mounted PLC interface relay designed for reliable switching and signal isolation in industrial automation and induction furnace control systems. Featuring 2 changeover (DPDT) contacts, a 24V AC/DC universal input, integrated LED status indication, and interference suppression circuitry, it provides dependable performance in demanding steel plant environments.
Its compact design makes it ideal for PLC output interfaces, interlocking circuits, control panels, and automation systems.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | PLC Interface Relay Module |
| Manufacturer | Phoenix Contact |
| Model | PLC-RSC-24UC/21-21 |
| Part Number | 2967073 |
| Input Voltage | 24 V AC/DC |
| Contact Configuration | 2 Changeover Contacts (DPDT) |
| Contact Material | AgNi |
| Continuous Current | 6 A |
| Maximum Switching Voltage | 250 V AC/DC |
| Maximum Inrush Current | 15 A (300 ms) |
| Response Time | 8 ms |
| Release Time | 10 ms |
| Mounting | DIN Rail (NS 35) |
| Operating Temperature | -40°C to +60°C |
- Please contact us for any question regarding the product.
Applications
- Induction Furnace PLC Panels
- Power Control Panels
- Hydraulic Control Systems
- Cooling Water Control Systems
- Furnace Automation
- Charging Machine Control Panels
- Interlocking Circuits
- Industrial PLC Systems
- Steel Plant Automation
🔧 Suitable For
Suitable for induction furnace systems manufactured by Electrotherm, Inductotherm, Megatherm, ABP, SMS Elotherm, and other OEM induction furnace manufacturers.
- Comapny names are mentioned solely to indicate typical applications and compatibility.
